Description

Thrust Ball Bearings

  • Three-part Assembly
  • Available in extra light, Light & Medium Series
  • Thrust Bearing is designed for unidirectional axial loads and not suitable for radial loads.

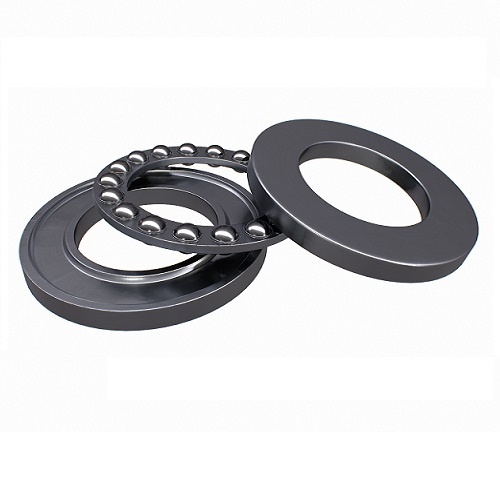

  • Thrust ball bearings consist of ball, retainer and both shaft and housing washers which contain grooves for the ball.

Specifications

  • AIMS SKU A0104916
  • Brand NACHI
  • Model Number 51101G/NACHI

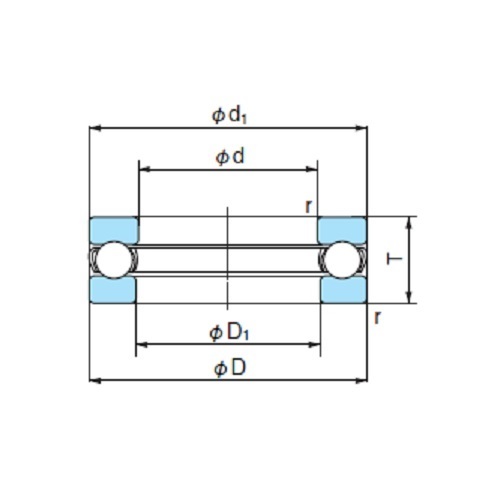

  • Dimension D1 (min) mm 13
  • Basic Static Load (N) 15400
  • Bore Diameter x Outer Diameter x Width (mm) 12 x 26 x 9
  • Limiting Speed (rpm) Oil Lubrication 9800
  • Basic Dynamic Load Rating (n) 10300
  • Dimension D1 (max) mm 26
  • Limiting Speed (rpm) Grease Lubrication 6500
  • R (min) 0.3
  • Type Spherical Roller Thrust Bearings
  • Series 51100-51400
SKU: A0104916 On Sale

NACHI 51101G Thrust Ball Bearings 51100 Series 12(d) x 26(D) x 9mm(W)

Single-direction Thrust Ball Bearings 51100 Series

$10.40
$12.96
