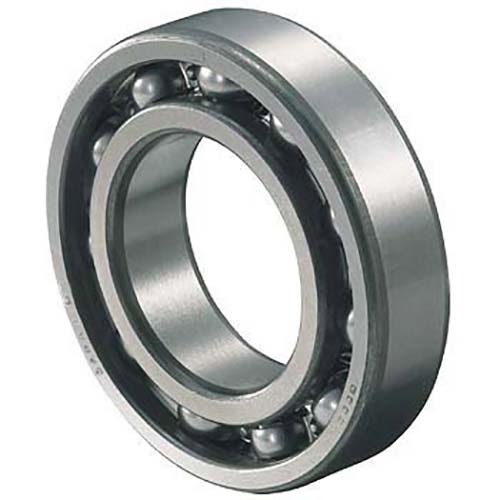

NACHI 6207 Deep-Groove Ball Bearings 6200 Series Open 35x 72x 17mm

Description

Deep Groove Ball Bearings

Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

AIMS SKU A0106489

Brand NACHI

Model Number 6207/NACHI

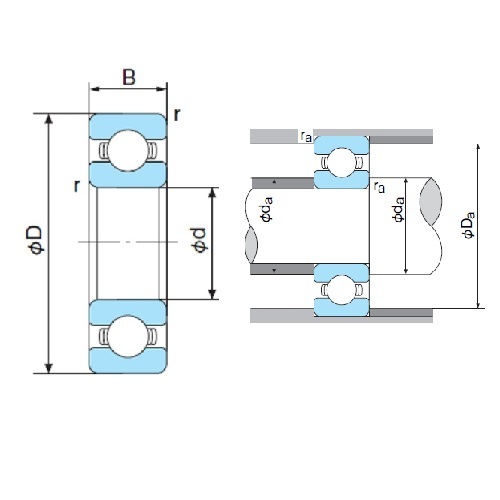

Bore Diameter x Outer Diameter x Width (mm) 35 x 72 x 17mm

R (min) 1.1

Basic Dynamic Load Rating (n) 25700

Basic Static Load (N) 15300

Limiting Speed (rpm) Grease Lubrication 9800

Limiting Speed (rpm) Oil Lubrication 11000

Width (b) mm 17

Type Deep-Groove Ball Bearings
System of Measurement Metric
