Deep Groove Ball Bearings

  • Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
  • Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
  • Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

  • AIMS SKU A0105107
  • Brand NACHI
  • Model Number 6300-2NSE9C3/NACHI
  • Bore Diameter x Outer Diameter x Width (mm) 10 x 35 x 11mm
  • R (min) 0.6
  • Basic Dynamic Load Rating (n) 8100
  • Basic Static Load (N) 3450
  • Limiting Speed (rpm) Grease Lubrication 17000
  • Limiting Speed (rpm) Oil Lubrication 27000
  • Abutment And Fillet Dimension Da (min) Mm 15
  • Abutment And Fillet Dimension Da (max) Mm 30
  • Abutment And Fillet Dimension Ra (max) Mm 0.6
  • Width (b) mm 11
SKU: A0105107

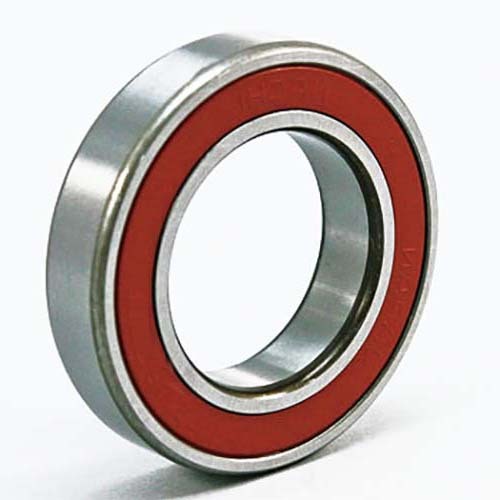

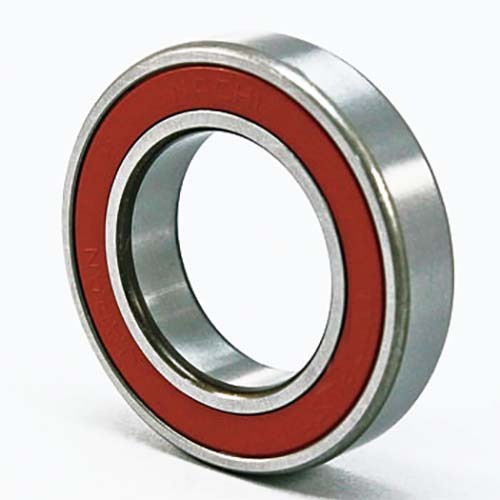

NACHI 6300-2NSE9C3 Deep-Groove Ball Bearings 6300 Series 2RS Rubber Seals 10 x 35 x 11mm

Deep-Groove Ball Bearings 6300 Series 2RS Rubber Seals

$7.06
