Description



Deep Groove Ball Bearings

  • Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
  • Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
  • Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

  • AIMS SKU A0105125
  • Brand NACHI
  • Model Number 6307C3/NACHI
  • Bore Diameter x Outer Diameter x Width (mm) 35 x 80 x 21mm
  • R (min) 1.5
  • Basic Dynamic Load Rating (n) 33500
  • Basic Static Load (N) 19200
  • Limiting Speed (rpm) Grease Lubrication 8800
  • Limiting Speed (rpm) Oil Lubrication 10000
  • Abutment And Fillet Dimension Da (min) Mm 44
  • Abutment And Fillet Dimension Da (max) Mm 71
  • Abutment And Fillet Dimension Ra (max) Mm 1.5
  • Width (b) mm 21
SKU: A0105125

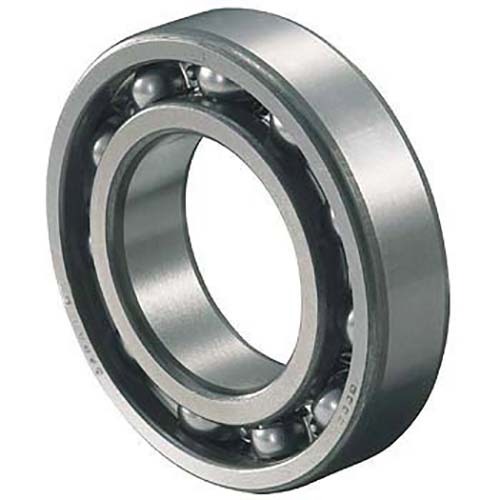

NACHI 6307C3 Deep-Groove Ball Bearings 6300 Series Open 35 x 80 x 21mm

Deep-Groove Ball Bearings 6300 Series Open

$23.28
