Description

Tapered Roller Bearings

  • Tapered roller bearings are roller bearings with conical rollers.
  • These bearings are designed to support heavy radial loads and heavy thrust loads in one direction.
  • Tapered roller bearings are generally separable; for example, the cone, consisting of the inner ring with roller assembly, can be mounted separately from the cup (outer ring).
  • Single Row Imperial Dimensions Tapered Roller Bearing designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

Specifications

  • AIMS SKU A0104985
  • Brand NACHI
  • Model Number 32010JA1/NACHI
  • Type Tapered Roller Bearings
  • System of Measurement Metric
  • Series 32004-32022

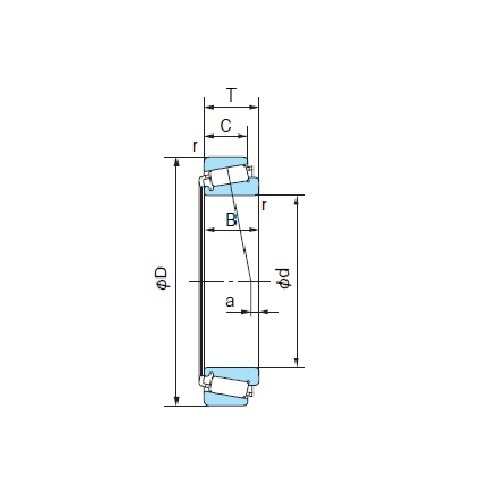

  • Bore Diameter x Outer Diameter x Width (mm) 50 x 80 x 20
  • Basic Dynamic Load Rating (n) 65700
  • Basic Static Load (N) 94500
  • Limiting Speed (rpm) Grease Lubrication 4600
  • Limiting Speed (rpm) Oil Lubrication 6100
  • Abutment And Fillet Dimension Da (min) Mm 55.5
SKU: A0104985 On Sale

NACHI 32010JA1 Tapered Roller Bearings 32000 Series 50 x 80 x 20mm

Tapered Roller Bearings Metric 32000 Series

$25.31
$36.15
