Description

Tapered Roller Bearings

  • Tapered roller bearings are roller bearings with conical rollers.
  • These bearings are designed to support heavy radial loads and heavy thrust loads in one direction.
  • Tapered roller bearings are generally separable; for example, the cone, consisting of the inner ring with roller assembly, can be mounted separately from the cup (outer ring).
  • Single Row Imperial Dimensions Tapered Roller Bearing designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

Specifications

  • AIMS SKU A0104955
  • Brand NACHI
  • Model Number LM48548/10/NACHI
  • Type Tapered Roller Bearings
  • System of Measurement Metric
  • Series Inch

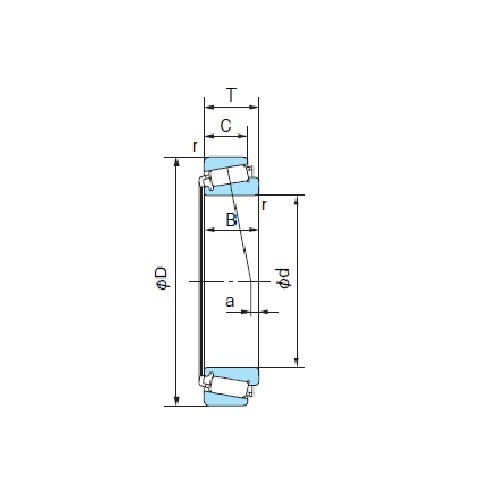

  • Bore Diameter x Outer Diameter x Width (mm) 34.925 x 65.088 x 18.034
  • Basic Dynamic Load Rating (n) 48000
  • Basic Static Load (N) 58500
  • Limiting Speed (rpm) Grease Lubrication 6000
  • Limiting Speed (rpm) Oil Lubrication 8000
  • Abutment And Fillet Dimension Da (min) Mm 46
SKU: A0104955 On Sale

NACHI LM48548 Tapered Roller Bearings Inch Series 34.925 x 65.088 x 18.288mm

Tapered Roller Bearings Inch Series

$13.34
$19.05
