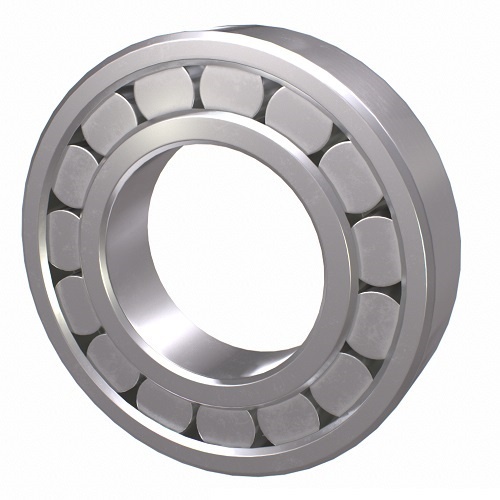

NACHI NUPK204S1 Cylindrical Roller Bearings 200 Series NUP 20 x 47 x 14mm

Description

Cylindrical Roller Bearings

Cylindrical roller bearings are designed to have heavy radial load- carrying capacity.
Cylindrical roller bearings are commonly separable and easy to mount and dismount.
Rolling elements are ground to provide maximum contact with the raceway and are precisely crowned to avoid edge loading due to any shaft misalignments.

Specifications

AIMS SKU A0105403

Brand NACHI

Model Number NUPK204S1/NACHI

Type Cylindrical Roller Bearings

System of Measurement Metric

Series 200

Bore Diameter x Outer Diameter x Width (mm) 20 x 47 x 14

R (min) 1

Basic Dynamic Load Rating (n) 15400

Basic Static Load (N) 12700

Limiting Speed (rpm) Grease Lubrication 15000

Limiting Speed (rpm) Oil Lubrication 18000

Abutment And Fillet Dimension Da (min) Mm 26

Abutment And Fillet Dimension Da (max) Mm 41

Abutment And Fillet Dimension Ra (max) Mm 1
