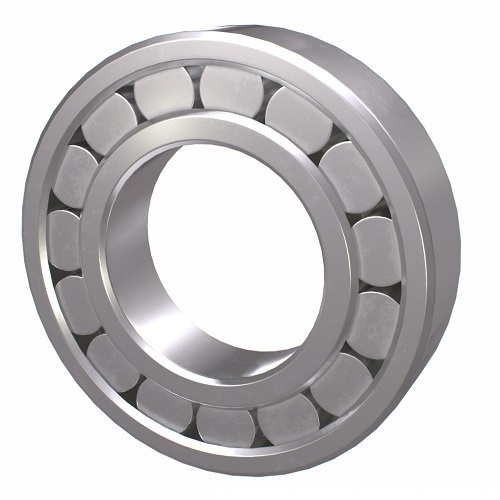

NACHI NUPK2205S14NC3 Cylindrical Roller Bearings 200 Series NUP 100 x 180 x 34mm

Description

Cylindrical Roller Bearings

Cylindrical roller bearings are designed to have heavy radial load- carrying capacity.
Cylindrical roller bearings are commonly separable and easy to mount and dismount.
Rolling elements are ground to provide maximum contact with the raceway and are precisely crowned to avoid edge loading due to any shaft misalignments.

Specifications

AIMS SKU A0105404

Brand NACHI

Model Number NUPK2205S14NC3/NACHI

Type Cylindrical Roller Bearings

System of Measurement Metric

Series 200

Bore Diameter x Outer Diameter x Width (mm) 100 x 180 x 34

R (min) 2.1

Basic Dynamic Load Rating (n) 183000

Basic Static Load (N) 217000

Limiting Speed (rpm) Grease Lubrication 3600

Limiting Speed (rpm) Oil Lubrication 4300

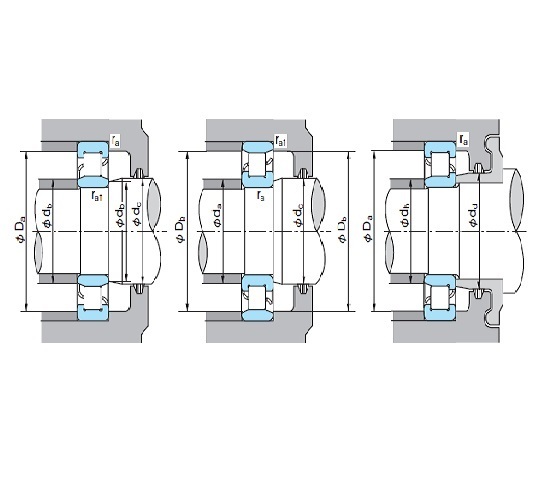

Abutment And Fillet Dimension Da (min) Mm 112

Abutment And Fillet Dimension Da (max) Mm 168

Abutment And Fillet Dimension Ra (max) Mm 2
