Description

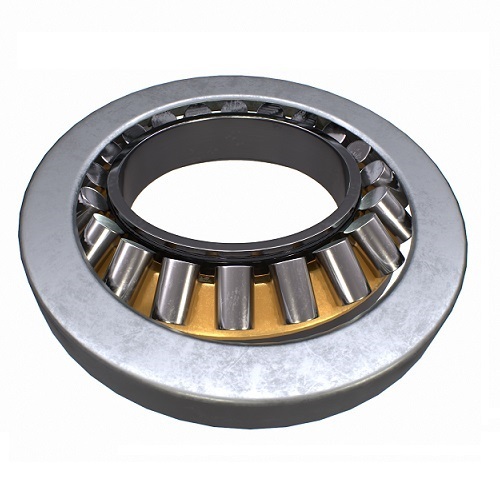

Spherical Roller Thrust Bearings

  • Spherical roller thrust bearings can sustain high loads at low-to-moderate speeds.
  • The raceway of housing washer of this bearing type is spherical with the center of the radius located on the bearing axis.

Specifications

  • AIMS SKU A0105028
  • Brand NACHI
  • Model Number 29412EX/NACHI
  • Bore Diameter x Outer Diameter x Width (mm) 60 x 130 x 42
  • R (min) 1.5
  • Basic Dynamic Load Rating (n) 350000
  • Basic Static Load (N) 915000
  • Limiting Speed (rpm) Grease Lubrication 1800
  • Limiting Speed (rpm) Oil Lubrication 2800

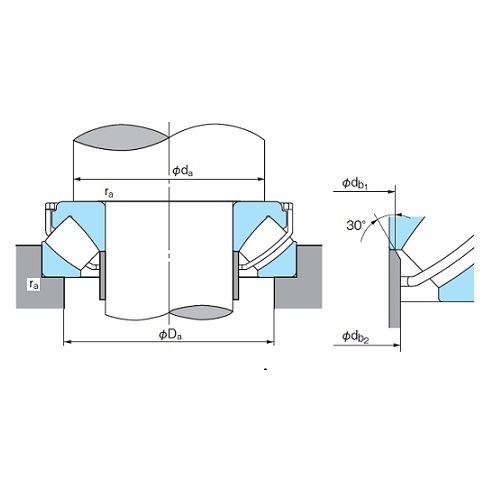

  • Abutment And Fillet Dimension Da (min) Mm 91
  • Abutment And Fillet Dimension Da (max) Mm 108
  • Abutment And Fillet Dimension Ra (max) Mm 1.5
  • Type Spherical Roller Thrust Bearings
SKU: A0105028 On Sale

NACHI 29412EX Spherical Roller Thrust Bearings 60(d) x 130(D) x 42(W)mm

Spherical Roller Thrust Bearings

$463.79
$579.74
