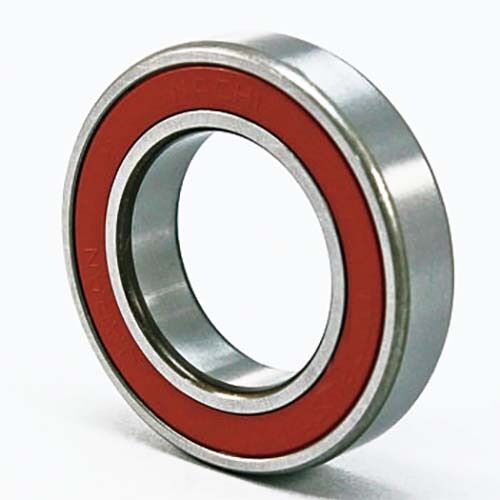

NTN 6013-2NSE Deep-Groove Ball Bearings 6000 Series 2RS Rubber Seals 65 x 100 x 18mm

Description

***This is a clearance sale and there are no returns. Please contact us if you need more details or to inspect the item before purchase.***

Deep Groove Ball Bearings

Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

AIMS SKU C0138

Brand NTN

Model Number 6013-2NSE

Type Deep-Groove Ball Bearings

Bore Diameter x Outer Diameter x Width (mm) 65 x 100 x 18mm

R (min) 1.1

Basic Dynamic Load Rating (n) 30500

Basic Static Load (N) 25200

Limiting Speed (rpm) Grease Lubrication 4000

Limiting Speed (rpm) Oil Lubrication 8000

Width (b) mm 18

System Measurement Metric

Abutment And Fillet Dimension Da (min) in mm 71

Abutment And Fillet Dimension Da (max) in mm 94

Abutment And Fillet Dimension Ra (max) in mm 1
