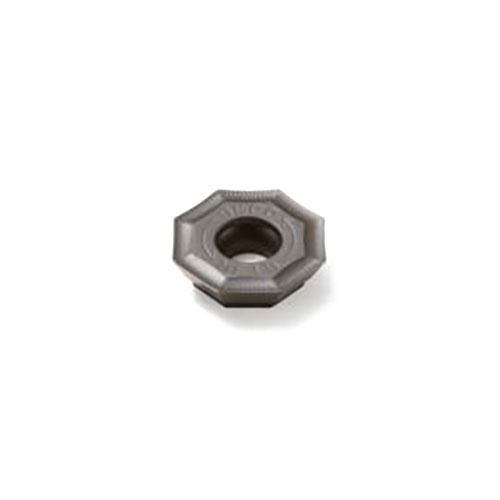

Octomill Insert Size 07 Grade F40M T Type (OFET07)

Medium machining condition.
OFET07 Insert Seat Size Code (SSC).
T type.

F40M Grade

PVD-coated grade for fine to medium rough milling.
First choice for milling with small feeds and/or low cutting speeds.
Excellent for milling when there is a risk of vibrations and when coolant is used.
Recommended for machining superalloys.
(Ti, Al) N – TiN.

About Seco Octomill Insert Size 07

Cutter range 50-315 mm (2-5 inches).
Max depth of cut 5 mm (0.197 inch)
Recommended depth of cut 4 mm (0.157 inch).
8 cutting edges, single-sided inserts.

Specifications

AIMS SKU A0121673

Brand Seco

Model Number 02505887

Barcode Number 5887025001008

Designation OFET070405TN-ME10,F40M

Grade Type Carbide PVD

Cutting Edge Count (CEDC) 8

Insert Hand (IH) Both

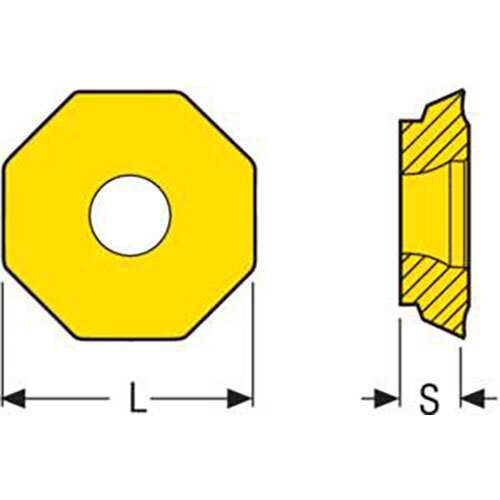

Insert Thickness (S) mm 4.56

Insert Seat Size Code (SSC) OFET07..

Inscribed Circle Diameter (IC) mm 17.94

Clearance Angle Major (an) Deg 26.0 deg

Theoretical Cutting Edge Length (L) mm 17.94

Wiper Edge Length (bs) Mm 1.5

Type Octomill Face Milling Insert Size 07
Grade F40M
Grade Type Carbide PVD
Insert Hand (IH) Neutral
