Description

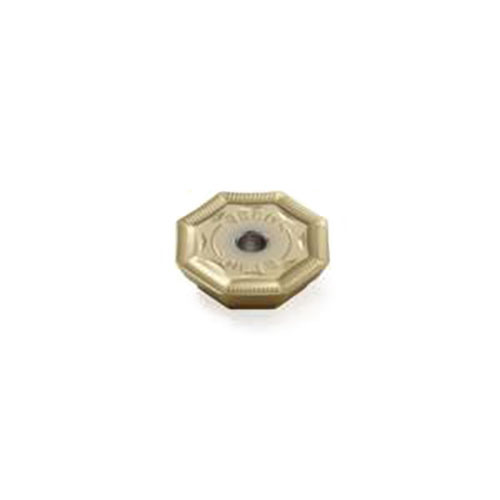

Octomill Insert Size 07 Grade T25M R Type (OFER0704)

  • Medium machining condition.
  • OFER0704Insert Seat Size Code (SSC).
  • R type.

T25M Grade

  • Carbide CVD.
  • CVD-coated grades are suitable for wear resistance in demanding applications with high feed rates and intermediate to high cutting speed.

About Seco Octomill Insert Size 07

  • Cutter range 50-315 mm (2-5 inches).
  • Max depth of cut 5 mm (0.197 inch)
  • Recommended depth of cut 4 mm (0.157 inch).
  • 8 cutting edges, single-sided inserts.

Specifications

  • AIMS SKU A0121661
  • Brand Seco
  • Model Number 74069499
  • Barcode Number 69499740001003
  • Designation OFER070405TN-ME10,T25M
  • Grade Type Carbide CVD
  • Cutting Edge Count (CEDC) 8
  • Insert Hand (IH) Both

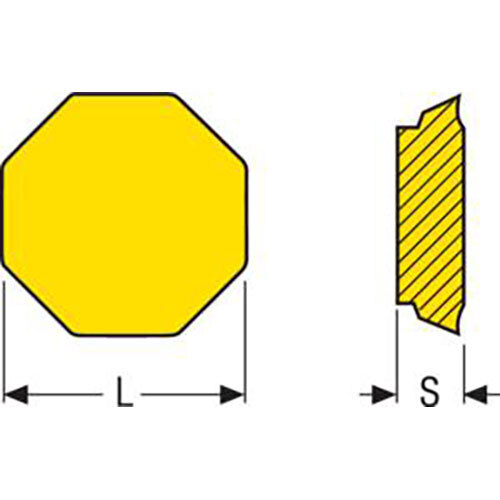

  • Insert Thickness (S) mm 4.56
  • Insert Seat Size Code (SSC) OFER0704..
  • Inscribed Circle Diameter (IC) mm 17.94
  • Clearance Angle Major (an) Deg 26.0 deg
  • Theoretical Cutting Edge Length (L) mm 17.94
  • Wiper Edge Length (bs) Mm 1.5
  • Type Octomill Face Milling Insert Size 07
  • Grade T25M
  • Grade Type Carbide CVD
  • Insert Hand (IH) Neutral

Video

SKU: A0121661

Seco Octomill Face Milling Insert Size 07 4.56 x 17.94 x 17.94mm Neutral Grade T25M R Type ME10 Designation OFER070405TN-ME10,T25M Pack of 10

Octomill Insert Size 07 Grade T25M R Type (OFER0704)

$401.36
