Description

P&N Panel Drill - Double Ended

  • P&N panel drills are developed to drill holes for rivets in flat and curved panels and used in sheet metal fabrication.
  • The double ended design doubles the life of the drill bit.

Features

  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance.
  • 135° self centering point minimises wandering when starting and ideal for thin materials.
  • Double ended design increases drill life. Ensure that the chuck jaws are fully tightened.
  • Bright finish for general purpose applications, non-ferrous metals & plastics.

Specifications

  • AIMS SKU A0132155
  • Brand P&N
  • Model Number 166044646
  • Barcode Number 9311744446469
  • Type Panel Drill
  • Designation N
  • Material HSS
  • Finish Brt
  • Overall Length (inch) 2-1/8
  • Flute Length (inch) 5/8
  • Diameter #30
  • Point Angle 135°
  • Point Form Standard
  • Point Tolerance h8
  • Rivet Size (inch) 1/8
  • X als
  • ul ul
SKU: A0132155

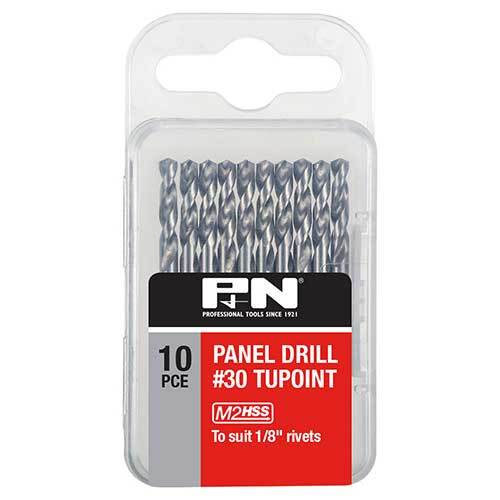

P&N 166044646 2-1/8" #30 Panel Drill Bit - Double Ended HSS - 10 Pack

P&N Panel Drill - Double Ended

$20.46
RRP $22.51
SAVE $2.05 (9%)
