Description

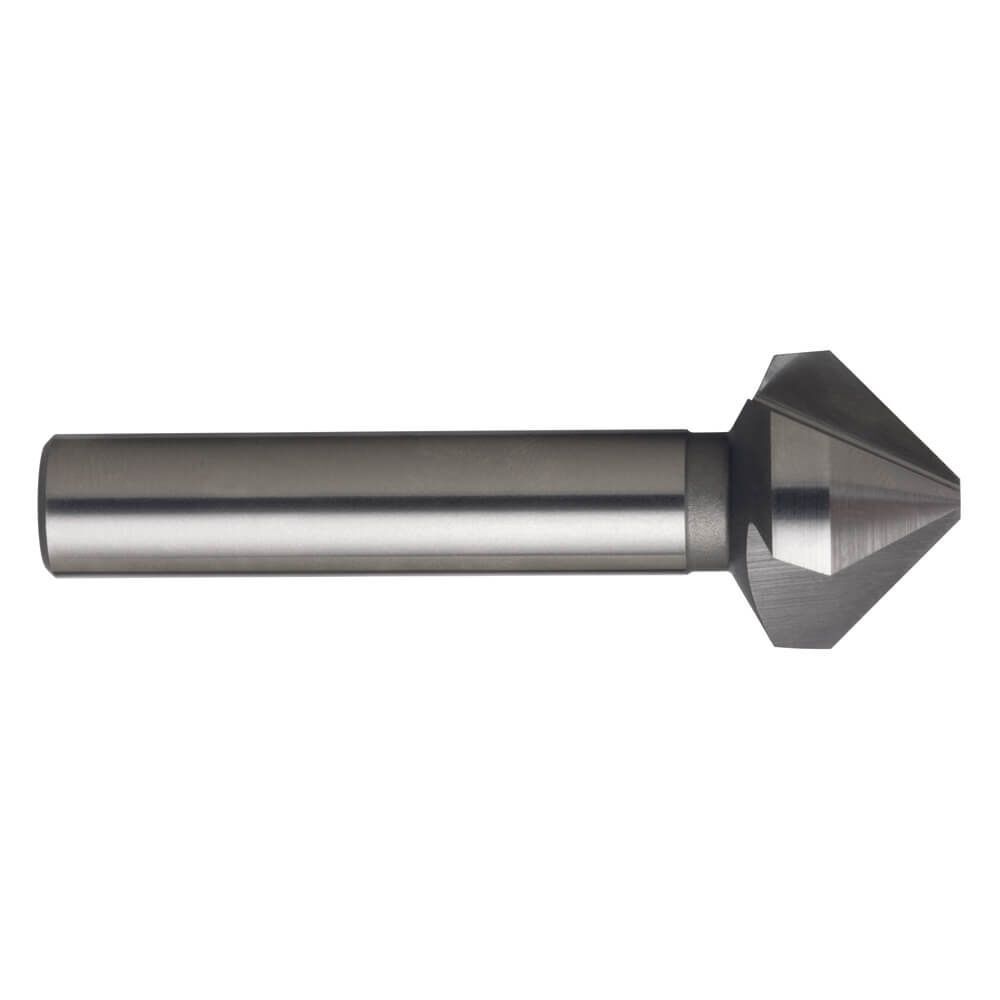

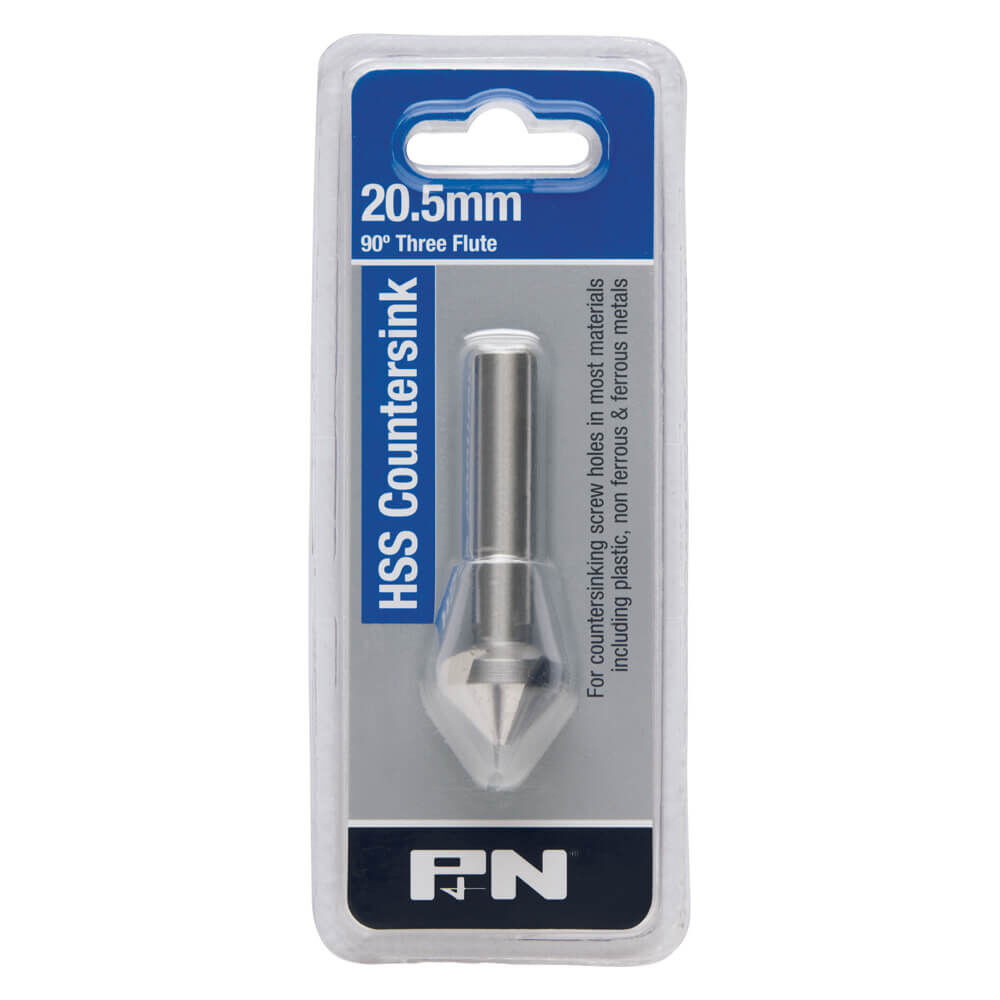

P&N Workshop 90° Three Flute Countersink Drill Bits

  • P&N Workshop 90° Three Flute Countersink for countersinking / counterboring screw holes.
  • Can be used in portable & pedestal drilling machines.

Features

  • 90° Three Flute for countersinking/counterboring screw holes
  • Made to DIN335 specifications
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
  • Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

  • Designation: N
  • Material: High Speed Steel
  • Finish: Bright
  • Point Type: 90°

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic - 180 HB
  • Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
  • Optimal for Cast Iron, Nodular (GGG) - Pearlitic- 250 HB
  • Optimal for Cast Iron, Malleable - Ferritic- 130 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable- 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable- 100 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable- 75 HB
  • Optimal for Aluminum & Magnesium, cast alloy≤12% Si - Heat Treatable- 90 HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 -110 HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)- 90 HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)- 100 HB
  • Optimal for Cast Iron - Chilled- 400 HB

Specifications

  • AIMS SKU A0001836
  • Brand P&N
  • Model Number 107CS0083
  • Barcode Number 9311744437412
  • Countersink Diameter (mm) 8.3
  • Overall Length (mm) 50
  • Shank (mm) 6
  • Group Code 107CS
  • Barcode PN-107CS
  • Type Three Flute Countersink
  • System of Measurement Metric
  • Material High Speed Steel (HSS)
  • Finish Bright
  • Purpose Countersinking
  • Point Angle 90°
SKU: A0001836

P&N 107CS0083 Workshop 8.3mm 90° Countersink Bit Three Flute - HSS

P&N Workshop 90° Three Flute Countersink Drill Bits
