Description

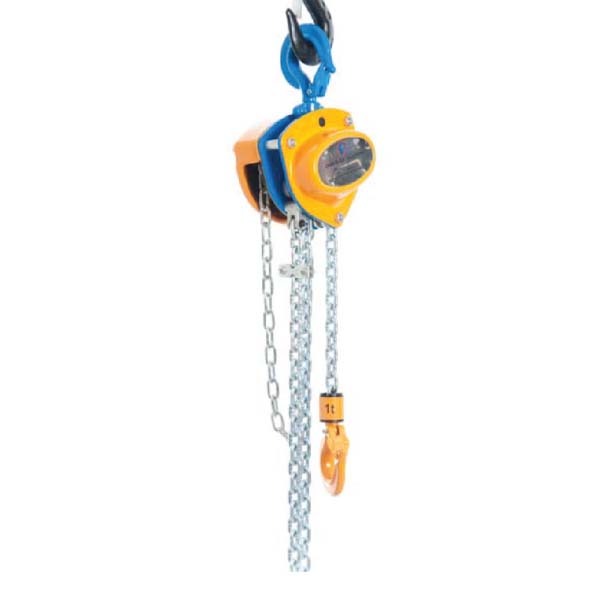

Pacific Chain Block

  • Pacific Chain Blocks feature better quality in a new compact design.
  • The extensive range is suitable for many applications in the mining, construction, industrial and automotive industries.
  • Better quality, easy to use, improved safety and all of this with reduced cost.

Key Features

  • All Pacific models are manufactured to comply with AS1418.2.
  • High strength end stops with secondary end anchor for increased safety.
  • "T" type hooks for improved load holding integrity (except for the 250kg capacity).
  • Gear system design for reduced effort when lifting loads.
  • Includes a specially designed hand wheel to eliminate hand chain slippage and pocket wear.
  • Encapsulated needle bearings and side plate bearings for smoother operation.
  • Brake lockout bearing for security of braking mechanism.
  • Key internal components are CNC machined before being heat-treated and toughened.
  • Fitted with high quality European zinc plated Grade 80 load chain.
  • No aluminium content which ensures suitability for mining applications.
  • Overall better design and improved finish to prolong life expectancy.

*All models are also available with a patented Overload Limiting device (except for the 250kg capacity). Contact AIMS for assistance.

Specifications

  • AIMS SKU A0170898
  • Brand Pacific Hoists
  • Model Number PCB301
  • Load Chain (mm) ?ò4 x 12
  • Hand Chain (mm) ?ò5 x 23.7
  • Hand Chain Drop (m) 2
  • Test Load (kg) 375
  • Effort To Lift Full Load 190 N
  • Capacity (Tonne) 0.25
  • Dimension A (mm) 106
  • Dimension B (mm) 68
  • Dimension C (mm) 108
  • Dimension D (mm) 280
  • Dimension E (mm) 20
  • Dimension F (mm) ?ò18
  • Load Capacity 250 kg
  • Lift Height 3 m
  • No. Of Falls 1
  • Net Weight for 3m Lift (kg) 6
  • Type Chain Block
SKU: A0170898

Pacific Chain Block 0.25T (250kg) x 3m

Pacific Chain Block

$257.37
