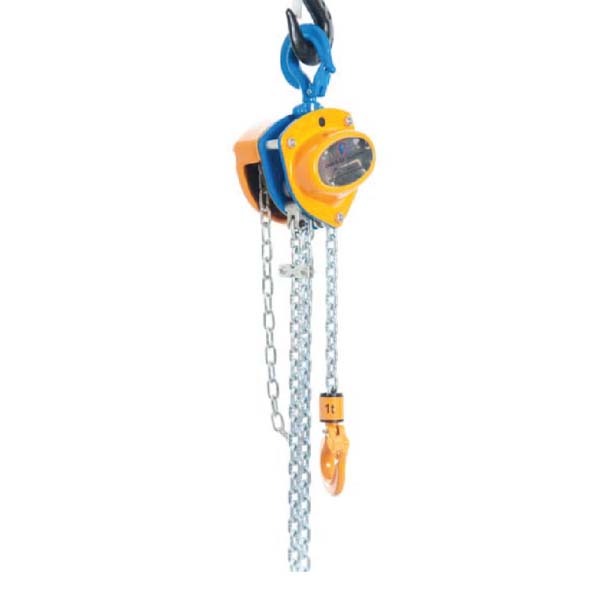

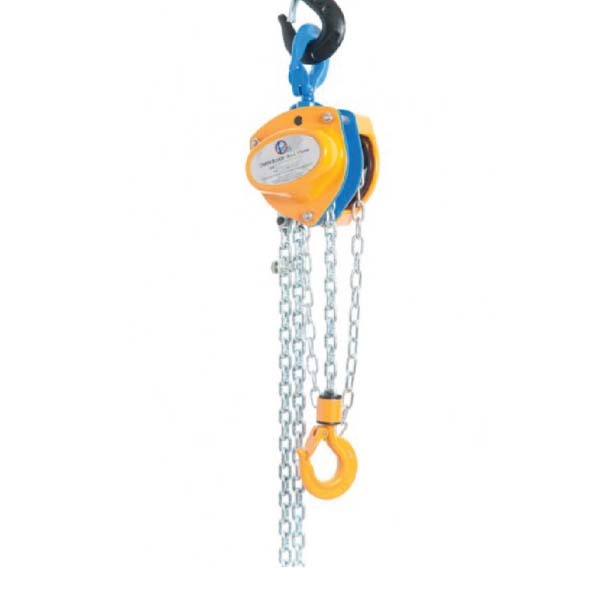

Pacific Chain Block With Overload Protection

  • Pacific Chain Blocks feature better quality in a new compact design.
  • The extensive range is suitable for many applications in the mining, construction, industrial and automotive industries.
  • With a patented Overload Limiting device to improve safety.
  • These chain blocks have it all; better quality, easy to use, improved safety and all of this with reduced cost.

Key Features

  • All Pacific models are manufactured to comply with AS1418.2.
  • High strength end stops with secondary end anchor for increased safety.
  • "T" type hooks for improved load holding integrity (except for the 250kg capacity).
  • Gear system design for reduced effort when lifting loads.
  • Includes a specially designed hand wheel to eliminate hand chain slippage and pocket wear.
  • Encapsulated needle bearings and side plate bearings for smoother operation.
  • Brake lockout bearing for security of braking mechanism.
  • Key internal components are CNC machined before being heat-treated and toughened.
  • Fitted with high quality European zinc plated Grade 80 load chain.
  • No aluminium content which ensures suitability for mining applications.
  • Overall better design and improved finish to prolong life expectancy.
  • All models are available with a patented Overload Limiting device (except for the 250kg capacity).

Specifications

  • AIMS SKU A0170914
  • Brand Pacific Hoists
  • Model Number PCB303L
  • Load Chain (mm) ?ò5 x 15
  • Hand Chain (mm) ?ò5 x 23.7
  • Hand Chain Drop (m) 2
  • Test Load (kg) 750
  • Effort To Lift Full Load 210 N
  • Capacity (Tonne) 0.5
  • Dimension A (mm) 128
  • Dimension B (mm) 75
  • Dimension C (mm) 130
  • Dimension D (mm) 280
  • Dimension E (mm) 22
  • Dimension F (mm) ?ò20
  • Load Capacity 500 kg
  • Lift Height 3 m
  • No. Of Falls 1
  • Net Weight for 3m Lift (kg) 9
  • Type Chain Block With Overload Protection
SKU: A0170914

Pacific Chain Block With Overload Protection 0.5T (500kg) x 3m

Pacific Chain Block With Overload Protection

$360.31
5/5 based on 1 review.
See all reviews

Choose a different size/variant

Calculate Shipping

Browse other products under

Chain Blocks

Browse other products by

Pacific Hoists

Reviews

Strong and beautifully made..

"I've been waiting a long time to get a block & tackle and this one is beautifully made as well as being compact and well-geared. It makes lifting effortless and has great safety features to ensure we never get any slippage. The service from AIMS was, as always, fantastic. Highly recommended."

-
