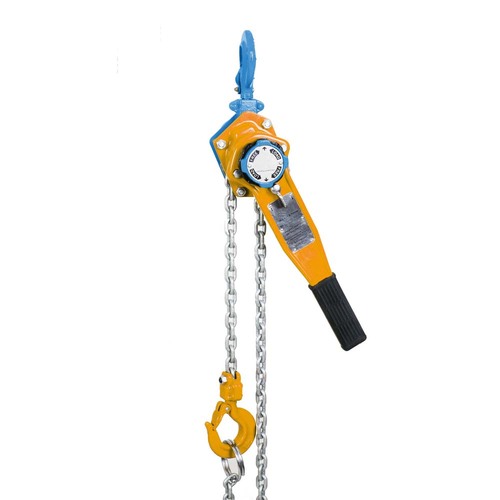

Pacific Lever Block

The extensive range of Pacific Lever Blocks features superior quality at an affordable price. They are suitable for mining, construction, transport, and automotive applications.

  • All Pacific Lever Blocks are individually load tested in accordance with AS1418.2
  • Improved braking performance to ensure the integrity of the load under all conditions
  • “T” type hooks for improved load holding integrity (except for the 250kg capacity).
  • Design improvements result in 25% less operator effort to lift the rated load
  • Safety of design has been prioritised to alleviate unexpected accidents
  • New style load hooks with cast “notched” safety latches increase service life of the latches and improve the safety of the lifting operation
  • Improved design of load sprockets for safer operation
  • Key internal components are now CNC machined for improved overall product reliability
  • UV powder coated paint to protect against sun exposure.
  • Overall better design and improved finish to prolong life expectancy
  • Designed in accordance with European Standard EN13157 & AS1418.2

**Pacific Lever Blocks are also available with a patented Overload Protection Device (O/L) except for 250kg.

Specifications

  • AIMS SKU A0171125
  • Brand Pacific Hoists
  • Model Number PLB302
  • Load Chain (mm) ?ò4 x 12
  • Net Weight (kg) 1.9
  • Test Load (kg) 375
  • Effort To Lift Full Load 227 N
  • Capacity (kg) 250
  • √ò 18
  • Ø 18
  • Length of Lever Handle (D) (mm) 168
  • No. Of Falls 1
  • Lift Height 1 m
  • Dimension H (mm) 235
  • Dimension E (mm) 20
  • Dimension D (mm) 168
  • Dimension C (mm) 86
  • Dimension B (mm) 70
  • Dimension A (mm) 100
  • Capacity (Tonne) 0.25
  • Type Lever Block
SKU: A0171125

Pacific Lever Block 0.25T (250kg)

Pacific Lever Block

$247.32
