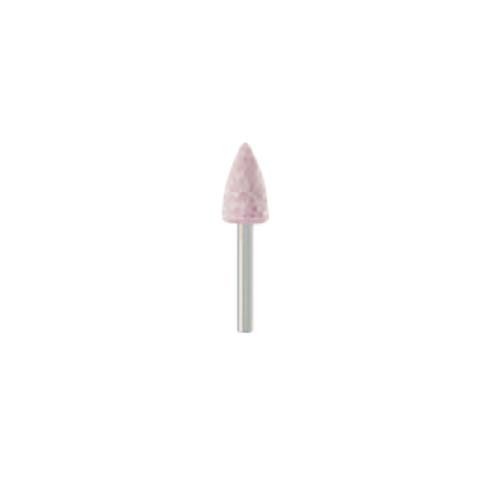

Pferd Mounted Point Series A Steel Edge

• Series A Steel Edge Series A mounted points are generally used on larger components.
• Due to the special shapes of series A mounted points, it is possible to grind in a variety of contours.
• The applications range from grinding out slits and grooves in hard-to-reach areas to machining bores and small holes as well as smoothing.

About Steel Edge Mounted Points

• The Steel Edge type is particularly well suited to edge grinding and deburring work on steel and cast steel components.
• Its applications also include grinding of chamfers in preparation for weld seams and grinding of contours

Advantages

• Long tool life and low tool wear due to hard, dimensionally stable bond.
• Economical to use due to the high edge stability even on low-speed tool drives.
• Particularly well suited to work on edges.

Materials that can be worked

• Steel
• Cast steel

Type

• Vitrified bond
• Pink aluminium oxide

Recommendations for use

• Steel Edge mounted points perform best at a cutting speed of 25 to 40 m/s.

Matching tool drives

• Flexible shaft drive
• Straight grinder

Safety notes

• The maximum permitted rotational speed relates to the unsupported shank length of 10 mm
