Description

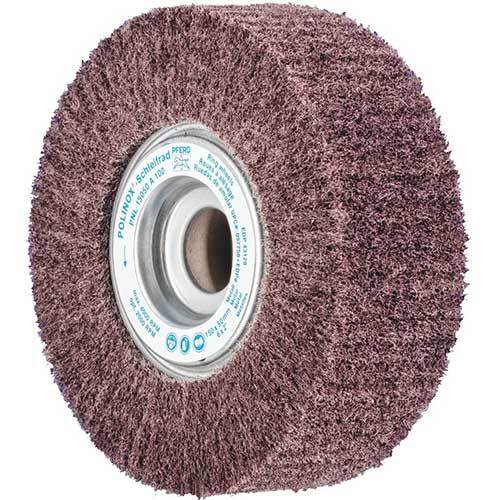

Pferd Polinox Ring Wheel - Wavy

  • POLINOX Ring Wheel Aluminium Oxide - PNG
  • Made of several very wavy arranged strips of non-woven material, wound around a core. The wavy structure of the non-woven material permits seamless brush matting of surfaces. The tool is designed for work on medium-sized areas on speed-adjustable angle grinders and fillet weld grinders and can be mounted directly on the work spindle of the drive system.
  • Abrasive: Aluminium oxide A
  • Made of several very wavily arranged strips of non-woven abrasive material, wound around a core. The wavy structure of the non-woven abrasive material permits seamless brush matting of surfaces
  • The tool is designed for working on medium-sized surfaces with speed-adjustable angle grinders and fillet weld grinders, and can be mounted directly onto the drive system's spindle without the need for additional clamping devices.

Advantages

  • Cool grinding and low thermal load on the workpiece
  •  No clogging of the tool


Application examples

  • Producing matt and satin finishes on metals
  • Cleaning of oxidized non-ferrous metals
  • Seamless brush finishing of stainless steel (INOX)
  • Surface roughening of plastics in preparation for adhesive bonding
  • Surface adaptation of weld seams


Recommendations for use

  • POLINOX mounted and unmounted grinding wheels achieve their best performance at a recommended cutting speed of 3000 rpm. This provides an ideal compromise between stock removal, surface quality, thermal load on the workpiece and tool wear.
  • M14 Thread


Safety notes

  • The maximum permitted peripheral speed is 32 m/s
  • For safety reasons, it is imperative to remain within the stated maximum permitted rotational speed at all times

Materials that can be worked

  • Aluminium
  • Cobalt-based alloys
  • Other non-ferrous metals
  • High-temperature-resistant materials
  • Nickel-based alloys (e. g. Inconell and Hasteloy)
  • Bronze
  • Hard non-ferrous metal
  • Titanium
  • Titanium alloys
  • Copper
  • Soft non-ferrous metal
  • Brass
  • Zinc
  • Stainless steel (INOX)
  • Thermoplastics
  • Fibre-reinforced duroplastics (GRP, CRP)
  • Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
  • Steel materials with a hardness over 54 HRC
  • Steel, cast steel
  • Steels up to 1,200 N/mmŒ_ (< 38 HRC)
  • Cast steel

Applications

  • Roughening
  • Deburring
  • Surface work
  • Cleaning
  • Structuring (matt finishing, brush matting and satin finishing)
  • Fine grinding in multiple steps

Drive types

  • Angle grinder
  • Cordless angle grinder

Specifications

  • AIMS SKU A0151807
  • Brand Pferd
  • Model Number 44644111
  • Barcode Number 4007220479667
  • Grit 100
  • Disc Size 150 x 50 mm
  • Maximum Speed 4000 RPM
  • Operational Speed 2000 RPM
  • Centre Hole Diameter 25.4 mm
  • Type Ring Wheel
  • Wheel Type PNL
SKU: A0151807 On Sale

Pferd Polinox Ring Wheel - Wavy PNL 150 x 50mm 100 Grit 44644111

Pferd Polinox Ring Wheel - Wavy PNL

$157.14
