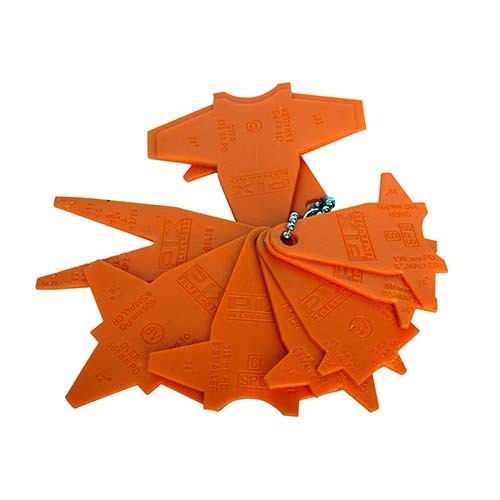

PIX Vee Belt Pulley Gauge

• PIX Pulley Gauges are specially designed for checking the profiles of the grooves of various types of pulleys.

About Groove Checking Procedure

• Identify the pulley gauge to be used according to the section and its diameter.
• Measure the groove by inserting the gauge and identify if any clearance lies between the sidewall of the groove and the gauge.
• Measure the present clearance using the feeler gauge.
