Description

***Special Manual Order. Due to variation in shipping costs, please contact Customer Service for a quote specific to your area or requirement.***

***Finance option available to approved applicants. Contact us for more information***

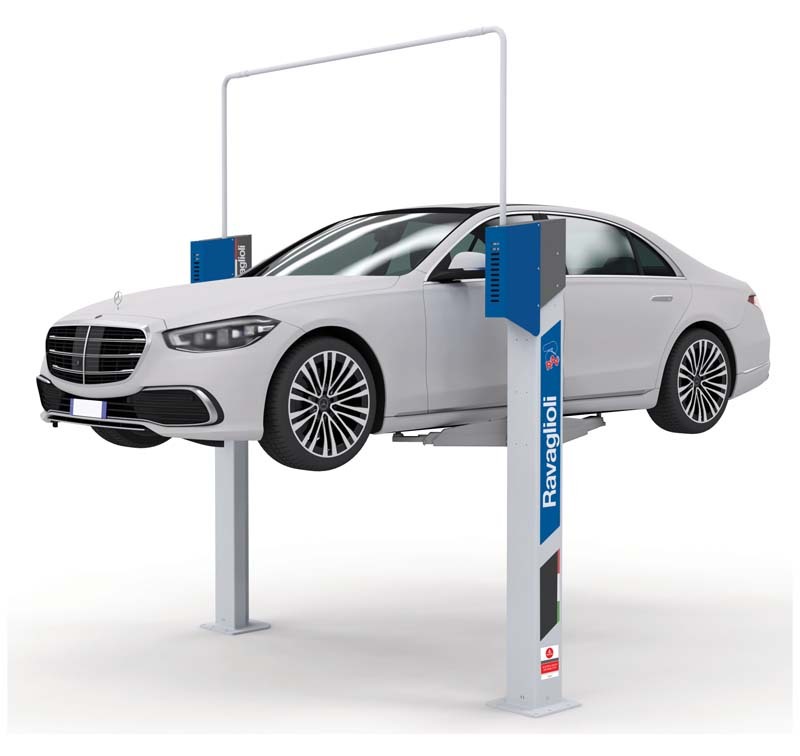

***Lift Only. Image is for illustration purposes only.***

Ravaglioli Baseless Screw 2 Post Electro-Mechanical Lift

Truly asymmetric columns designed to optimise the drive-through and footprint
Internal carriages running on lubricated sliding guides, protected from the external environment, ensure a longer life to the sliding elements.
3-stage arms with quick fit and telescopic rubber pads
Equipped with an acoustic anti-toe trap system
Solid automatic arm locking.
The geometry of the arms has been designed to lift from microcars to long wheelbase sedan.
Max. lifting height 2,000mm
Lifting time 42 seconds
Min. pad height 96mm
Max. pad height 130mm
Column height 3,223mm
Drive-through width 2,372-2,472mm
Min. ceiling standard height 4,025mm
Adjustable height - suits low roof applications
Arm layout asymmetrical
Min. front arm length 555mm
Max. front arm length 1100mm
Min. rear arm length 805mm
Max. rear arm length 1,200mm
Driving power 2x2.6kW
Width 3,250-3,350mm
Height 4,025mm
