Description

About Recoil Inserts

  • Recoil® inserts are rolled from high-quality stainless steel wire with a diamond-shaped cross-section, wound to
    the shape of a spring thread.
  • Once the insert is installed into a tapped hole, it provides a permanent and wear-resistant thread in the parent material designed to be stronger than the original thread.
  • The inserts are greater in diameter than the corresponding tapped hole and compress as they are installed. This allows maximum surface contact area with the tapped thread, safely and permanently anchoring the inserts into place.
  • The insert’s compensatory action shares the load over the entire bolt and hole, increasing holding or pull out strength.
  • With a Recoil® insert in place, load and stress are more evenly distributed.

Applications

  • Original Equipment Manufacture
    • Recoil® offers innovative manufacturers the opportunity to design high-quality products
      using lighter weight metals as well as standard materials.
    • Recoil® inserts can be used in aluminium and magnesium alloys, carbon fibres and other
      materials to achieve stronger and more reliable threads than the parent material alone.
    • Recoil® brand inserts are widely used by manufacturers in a variety of markets including
      the following:
      • Automotive
      • Electronic
      • Aerospace
      • Ship Building
      • Defense
      • Power Generation
      • Transport
      • Manufacturing Equipment
  •  Repair
    • Wherever you encounter a damaged thread Recoil® provides:
      • The quickest and simplest method of thread repair.
      • A quality thread with superior holding power.
      • The most cost-effective method of repair.
      • A new thread in the original size.
      • A thread generally stronger than the original.

Specifications

  • AIMS SKU A0012459
  • Brand Recoil
  • Model Number RC2409020
  • Barcode Number 020317826889
  • Type Recoil Insert
  • System of Measurement Imperial
  • Material 304 Stainless Steel
  • Fastener Size 9/16-20 x 1/2
  • Depth 1/2"D
SKU: A0012459 On Sale

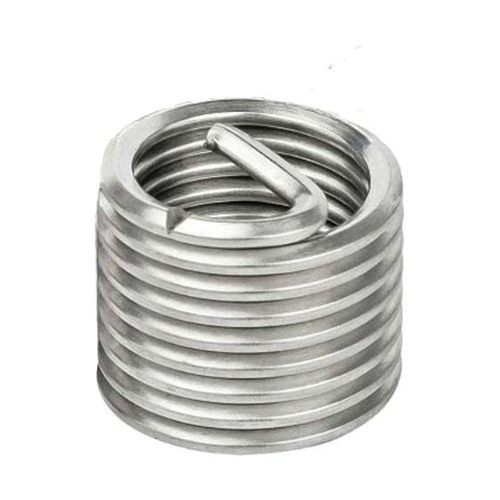

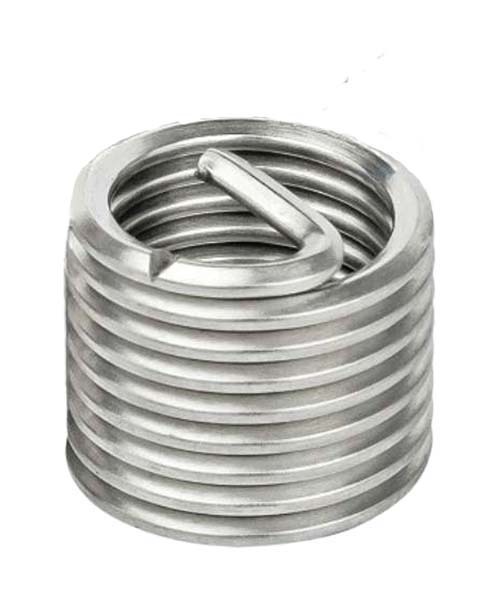

Recoil RC2409020 Insert 9/16-20 x 1/2"

Recoil Insert

$12.61
$15.76
Sale Ends in
5/5 based on 1 review.
See all reviews

Calculate Shipping

Browse other products under

Inserts

Browse other products by

Recoil

Reviews

They just do what it says on the tin.

"I use them for repairing bike cranks. Strange that I ran out of r/h threaded inserts before the l/h ones, which is the more usual way these things go."

-
