*** JTEKT (Formerly Koyo Brand) ***

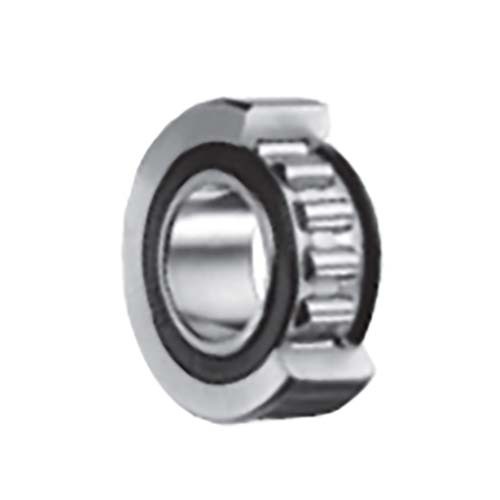

Roller Follower Full Complement Cylindrical Crowned Outer Ring (NUTR)

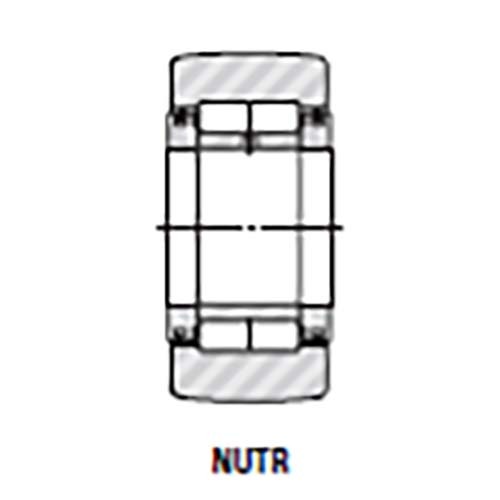

  • NUTR, track roller, yoke type, crowned outer diameter with inner ring and washers (two paths of cylindrical rollers).

About Track Roller

  • Track rollers (also known as cam followers) are characterized by their thick-walled outer rings that run directly on a track.
  • The thick outer rings permit high load-carrying capability while minimizing both distortion and bending stresses.
  • Sealed designs with internal thrust washers help extend service life under conditions of infrequent lubrication.

Features

  • Available in two basic designs: with an inner ring for straddle mounting in a yoke or with an integral stud for cantilever mounting.

Benefits

  • High load-carrying capability with minimized distortion and bending stresses.
  • Extended service life under conditions of infrequent re-lubrication.

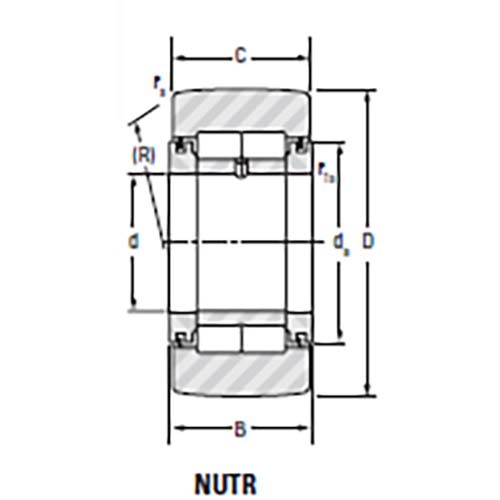

Specifications

  • AIMS SKU A0157703
  • Brand Koyo
  • Model Number NUTR20/KOYO
  • Width (mm) 25
  • C (mm) 24
  • Inside Diameter (mm) 20
  • Outside Diameter (mm) 47
  • Speed Rating Grease Min-1 4500
  • Da (mm) 32
  • Load Rating Bearing Dynamic C (kn) 39
  • Load Rating Track Roller Dynamic Cw (kn) 28.1
  • Load Rating Track Roller Dynamic Fr Perm (kn) 20.5
  • Rs (mm) 1
  • Rls Min (mm) 0.3
  • Bearing Designation Crowned Track Roller NUTR20
  • Cylindrical Track Roller NUTR20DZ
  • Load Rating Bearing Static Co (kn) 53.2
  • Load Rating Track Roller Static Fr Perm (kn) 32.7
  • Type Roller Follower Yoke Type
SKU: A0157703

Koyo/JTEKT Roller Follower Full Comp Cylindrical Roller Crowned 20 x 47 x 25mm

Roller Follower Full Comp Cylindrical Crowned Outer Ring

$155.13
