*** JTEKT (Formerly Koyo Brand) ***

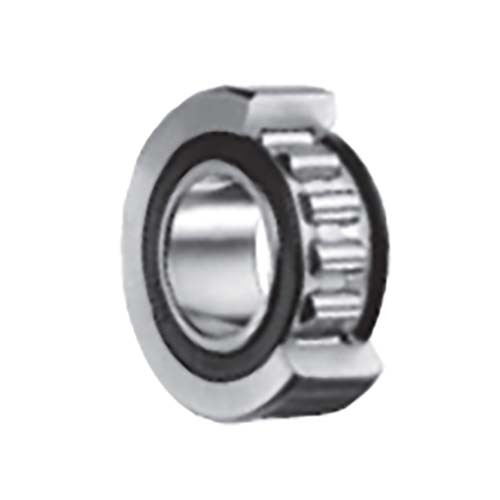

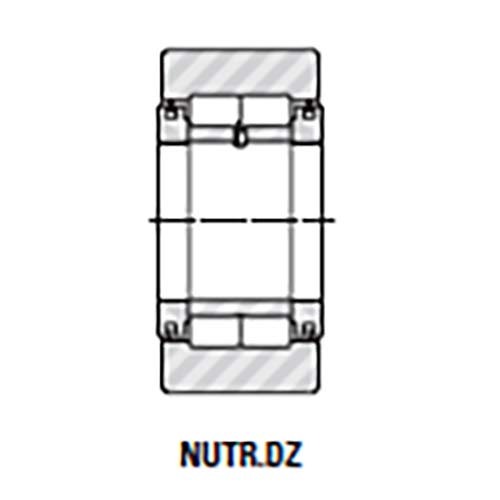

Roller Follower Full Complement Cylindrical Outer Ring (NUTR.DZ)

  • NUTR, track roller, yoke type, crowned outer diameter with inner ring and washers (two paths of cylindrical rollers).
  • DZ, cylindrical outer diameter (NUTR style only).

About Track Roller

  • Track rollers (also known as cam followers) are characterized by their thick-walled outer rings that run directly on a track.
  • The thick outer rings permit high load-carrying capability while minimizing both distortion and bending stresses.
  • Sealed designs with internal thrust washers help extend service life under conditions of infrequent lubrication.

Features

  • Available in two basic designs: with an inner ring for straddle mounting in a yoke or with an integral stud for cantilever mounting.

Benefits

  • High load-carrying capability with minimized distortion and bending stresses.
  • Extended service life under conditions of infrequent re-lubrication.

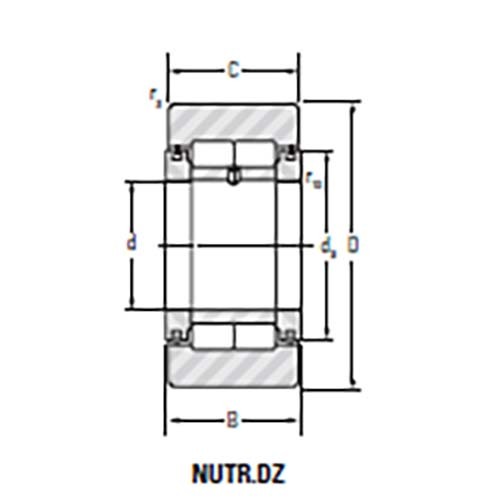

Specifications

  • AIMS SKU A0157720
  • Brand Koyo
  • Model Number NUTR4090DZ/KOYO
  • Width (mm) 32
  • C (mm) 30
  • Inside Diameter (mm) 40
  • Outside Diameter (mm) 90
  • Speed Rating Grease Min-1 2500
  • Da (mm) 55
  • Load Rating Bearing Dynamic C (kn) 88
  • Load Rating Track Roller Dynamic Cw (kn) 69.1
  • Load Rating Track Roller Dynamic Fr Perm (kn) 75.4
  • Rs (mm) 1.1
  • Rls Min (mm) 0.6
  • Bearing Designation Crowned Track Roller NUTR4090
  • Cylindrical Track Roller NUTR4090DZ
  • Load Rating Bearing Static Co (kn) 132
  • Load Rating Track Roller Static Fr Perm (kn) 111
  • Type Roller Follower Yoke Type
SKU: A0157720

Koyo/JTEKT Roller Follower Full Comp Cylindrical Roller Cylindrical 40 x 90 x 32mm

Roller Follower Full Complement Cylindrical Outer Ring

$424.09
