Description

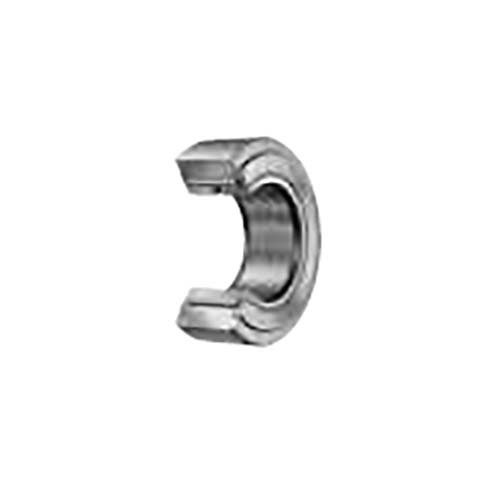

Roller Follower Non-Separable Full Complement 2RS Crowned Outer Ring (NART)

  • Sealed type.
  • Metric series.
  • With a crowned outer ring.

All About Roller Follower

  • Roller Followers are bearings in which needle rollers are incorporated in a thick-walled outer ring.
  • These bearings are designed for outer ring rotation, and the outer rings run directly on mating track surfaces.
  • They are used as follower bearings for cam mechanisms and for linear motions.

All About Non-separable Roller Followers

  • These non-separable type bearings have side plates fixed on both sides of the inner ring and include the caged type and the full complement type.
  • Both shield type and sealed type are available.
  • Inch series Non-separable Roller Followers are full complement type bearings and their surface is treated with black oxide surface treatment.

All About Structure and Features

  • Roller Followers are bearings designed for outer ring rotation, in which needle rollers are incorporated in a thick-walled outer ring.
  • Both crowned and cylindrical outer rings are available.
  • The outer rings run directly on mating track surfaces, and the crowned outer ring is effective in relieving the edge load caused by mounting errors.
  • The cylindrical outer ring, on the other hand, has a large contact area with the mating track surface and is suitable for applications involving large loads or low track surface hardness.
  • In Roller Followers, there are two types of bearings available, the caged type and the full complement type.
  • The caged type is useful for applications at high-speed rotation.
  • The full complement type, on the other hand, is suitable for heavy-load applications at low-speed rotation or oscillating motions.
  • Roller Followers include separable and non-separable types.
  • Also, in addition to the open type, shield type and sealed type are available.
  • The clearances between the side plates and outer ring of the shield type are narrow, and form labyrinths.
  • In the sealed type, special synthetic rubber seals are assembled in these clearances, and they are effective in preventing the penetration of dust and dirt.
  • These bearings are available in a variety of types to suit almost any kind of application. They are widely used for cam mechanisms and for linear motions of conveying equipment.

Specifications

  • AIMS SKU A0156682
  • Brand IKO

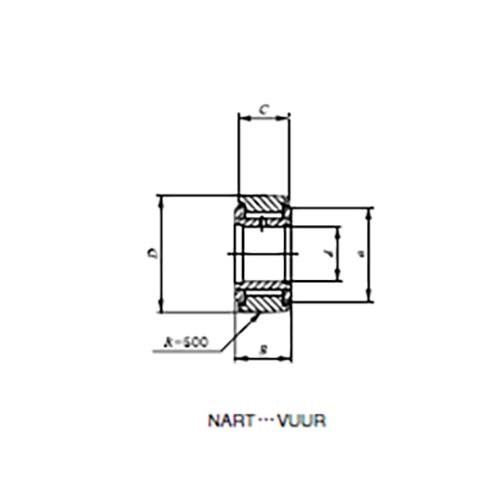

  • Model Number NART5VUUR/IKO
  • Outside Diameter 16 mm
  • Width (mm) 12
  • Shaft Diameter (mm) 5
  • C (mm) 11
  • A (mm) 12
  • Inside Diameter (mm) 5
  • Outside Diameter (mm) 16
  • Width 12 mm
  • Bore Diameter 5 mm
  • Basic Dynamic Load Rating C (N) 6810
  • Basic Static Load Rating C0 (N) 8370
  • Maximum Allowable Static Load 7310
  • Type Roller Follower
SKU: A0156682

IKO Roller Follower Non-Sep Full Comp 2RS Crowned Outer Ring 5 x 16 x 12mm

Roller Follower Non-Sep 2RS Crowned Outer Ring - NART
