Description

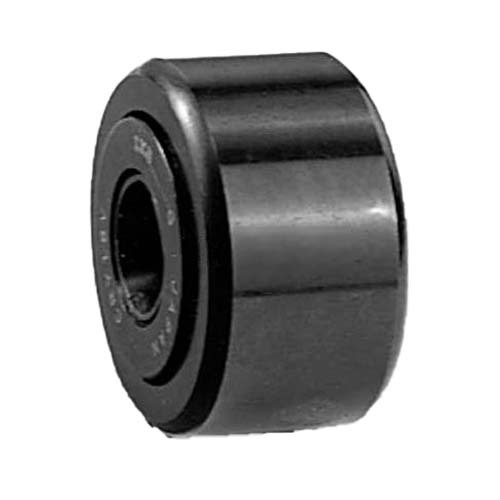

Roller Follower Non-Separable Full Complement 2RS Crowned Outer Ring

  • Sealed type.
  • Inch series.
  • Full complement type
  • With a crowned outer ring.

All About Roller Follower

  • Roller Followers are bearings in which needle rollers are incorporated in a thick-walled outer ring.
  • These bearings are designed for outer ring rotation, and the outer rings run directly on mating track surfaces.
  • They are used as follower bearings for cam mechanisms and for linear motions.

All About Non-separable Roller Followers

  • These non-separable type bearings have side plates fixed on both sides of the inner ring and include the caged type and the full complement type.
  • Both shield type and sealed type are available.
  • Inch series Non-separable Roller Followers are full complement type bearings and their surface is treated with black oxide surface treatment.

All About Structure and Features

  • Roller Followers are bearings designed for outer ring rotation, in which needle rollers are incorporated in a thick-walled outer ring.
  • Both crowned and cylindrical outer rings are available.
  • The outer rings run directly on mating track surfaces, and the crowned outer ring is effective in relieving the edge load caused by mounting errors.
  • The cylindrical outer ring, on the other hand, has a large contact area with the mating track surface and is suitable for applications involving large loads or low track surface hardness.
  • In Roller Followers, there are two types of bearings available, the caged type and the full complement type.
  • The caged type is useful for applications at high-speed rotation.
  • The full complement type, on the other hand, is suitable for heavy-load applications at low-speed rotation or oscillating motions.
  • Roller Followers include separable and non-separable types.
  • Also, in addition to the open type, shield type and sealed type are available.
  • The clearances between the side plates and outer ring of the shield type are narrow, and form labyrinths.
  • In the sealed type, special synthetic rubber seals are assembled in these clearances, and they are effective in preventing the penetration of dust and dirt.
  • These bearings are available in a variety of types to suit almost any kind of application. They are widely used for cam mechanisms and for linear motions of conveying equipment.

Specifications

  • AIMS SKU A0156633
  • Brand IKO
  • Model Number CRY12VUUR/IKO
  • Outside Diameter 3/4 in
  • Basic Dynamic Load Rating C (N) 8710
  • Shaft Diameter Press Fit Max 6.363
  • Shaft Diameter Press Fit Min 6.353
  • Shaft Diameter Drive Fit Max 6.358
  • Shaft Diameter Drive Fit Min 6.348
  • Shaft Diameter Push Fit Max 6.342
  • Shaft Diameter Push Fit Min 6.332
  • a (in) 0.567
  • R (in) 10
  • Width (in) 1/2
  • B (in) 0.5625
  • Basic Static Load Rating C0 (N) 12300
  • Bore Diameter 1/4 in
  • Inside Diameter (in) 1/4
  • Shaft Diameter (in) 1/4
  • Width 1/2 in
  • Outside Diameter (in) 3/4
  • R (mm) 250
  • D (mm) 19.05
  • b (mm) 14.288
  • A (mm) 14.4
  • C (mm) 12.7
  • Shaft Diameter (mm) 6.35
  • Type Roller Follower
SKU: A0156633

IKO Roller Follower Non-Sep Full Comp 2RS Crowned Outer Ring 1/4 x 3/4 x 1/2"

Roller Follower Non-Sep Complement Crowned Outer Ring
