*** JTEKT (Formerly Koyo Brand) ***

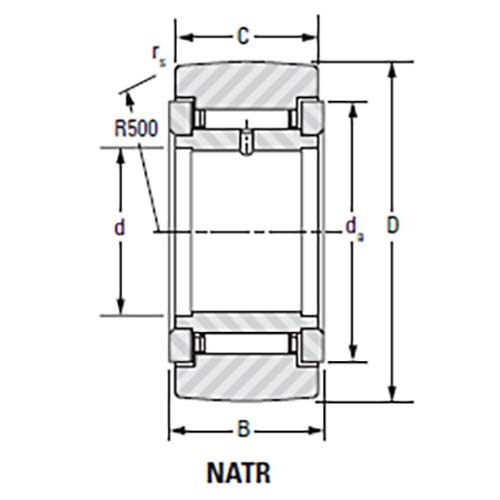

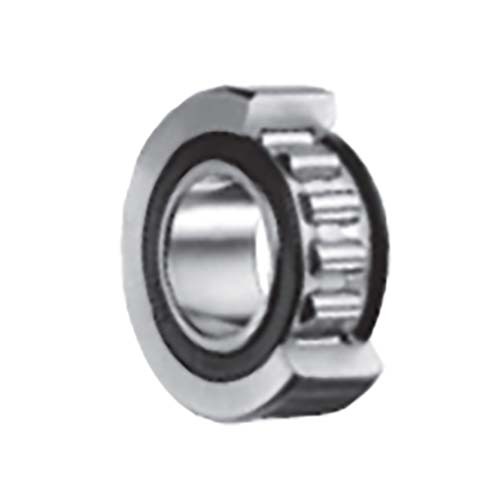

Roller Follower Separable w/ Inner Ring 2RS Crowned Outer Ring (NATR)

  • Yoke-type track roller with end washer.
  • NATR, track roller, yoke type, profiled outer diameter, with inner ring, with washer.

About Track Roller

  • Track rollers (also known as cam followers) are characterized by their thick-walled outer rings that run directly on a track.
  • The thick outer rings permit high load-carrying capability while minimizing both distortion and bending stresses.
  • Sealed designs with internal thrust washers help extend service life under conditions of infrequent lubrication.

Features

  • Available in two basic designs: with an inner ring for straddle mounting in a yoke or with an integral stud for cantilever mounting.

Benefits

  • High load-carrying capability with minimized distortion and bending stresses.
  • Extended service life under conditions of infrequent re-lubrication.

Specifications

  • AIMS SKU A0157764
  • Brand Koyo
  • Model Number NATR5/KOYO
  • Width (mm) 12
  • C (mm) 11
  • Inside Diameter (mm) 5
  • Outside Diameter (mm) 16
  • Speed Rating Grease Min-1 13000
  • Da (mm) 13
  • Rs (mm) 0.3
  • As A Bearing Dynamic C (kn) 4.62
  • Static Co (kn) 5.19
  • As A Track Roller Dynamic Cw (kn) 3.34
  • As A Track Roller Dynamic Fr Perm (kn) 2.62
  • As A Track Roller Static Fr Perm (kn) 4.01
  • Type Roller Follower Yoke Type
SKU: A0157764

Koyo/JTEKT Roller Follower Sep. w/ Inner Ring 2RS Crowned Outer Ring 5 x 16 x 12mm

Roller Follower Sep w/ Inner Ring 2RS Crowned Outer Ring
