Roller Follower Separable w/ Inner Ring Crowned Outer Ring (STO) - Koyo

Description

*** JTEKT (Formerly Koyo Brand) ***

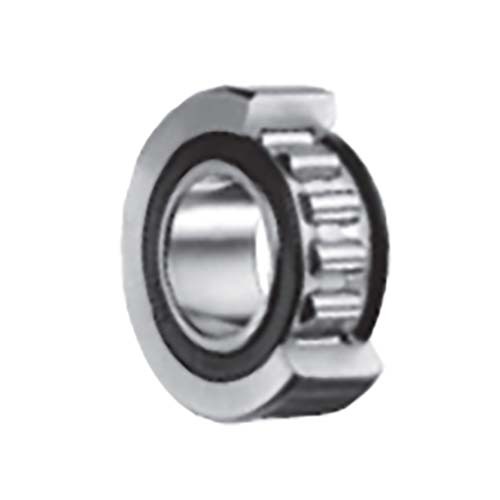

Roller Follower Separable w/ Inner Ring Crowned Outer Ring (STO)

Yoke-type track roller without end washer.
STO, track roller, yoke type, profiled outer diameter, with inner ring, without washer.

About Track Roller

Track rollers (also known as cam followers) are characterized by their thick-walled outer rings that run directly on a track.
The thick outer rings permit high load-carrying capability while minimizing both distortion and bending stresses.
Sealed designs with internal thrust washers help extend service life under conditions of infrequent lubrication.

Features

Available in two basic designs: with an inner ring for straddle mounting in a yoke or with an integral stud for cantilever mounting.

Benefits

High load-carrying capability with minimized distortion and bending stresses.
Extended service life under conditions of infrequent re-lubrication.

Specifications

AIMS SKU A0157762

Brand Koyo

Model Number STO6/KOYO

Width (mm) 10

C (mm) 9.8

Inside Diameter (mm) 6

Outside Diameter (mm) 19

Fw (mm) 10

r1s min (mm) 0.3

Speed Rating Grease Min-1 9400

Da (mm) 13

Rs (mm) 0.3

Cylindrical Track Roller STO6DZ

Crowned Track Roller STO6

As A Bearing Dynamic C (kn) 5.4

Static Co (kn) 6.43

As A Track Roller Dynamic Cw (kn) 4.15

As A Track Roller Dynamic Fr Perm (kn) 4.04

As A Track Roller Static For Perm (kn) 5.63

Type Roller Follower Yoke Type
