*** JTEKT (Formerly Koyo Brand) ***

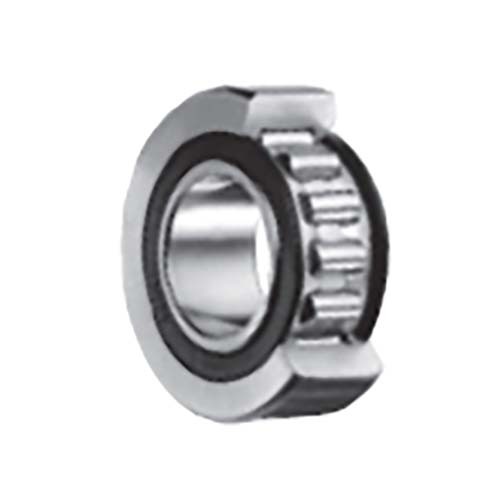

Roller Follower Separable w/ Inner Ring Cylindrical Outer Ring (STO.DZ)

  • Yoke-type track roller without end washer.
  • STO, track roller, yoke type, profiled outer diameter, with inner ring, without washer.
  • DZ, cylindrical outer diameter

About Track Roller

  • Track rollers (also known as cam followers) are characterized by their thick-walled outer rings that run directly on a track.
  • The thick outer rings permit high load-carrying capability while minimizing both distortion and bending stresses.
  • Sealed designs with internal thrust washers help extend service life under conditions of infrequent lubrication.

Features

  • Available in two basic designs: with an inner ring for straddle mounting in a yoke or with an integral stud for cantilever mounting.

Benefits

  • High load-carrying capability with minimized distortion and bending stresses.
  • Extended service life under conditions of infrequent re-lubrication.

Specifications

  • AIMS SKU A0157754
  • Brand Koyo
  • Model Number STO6DZ/KOYO
  • Width (mm) 10
  • C (mm) 9.8
  • Inside Diameter (mm) 6
  • Outside Diameter (mm) 19
  • Fw (mm) 10
  • r1s min (mm) 0.3
  • Speed Rating Grease Min-1 9400
  • Da (mm) 13
  • Rs (mm) 0.3
  • Cylindrical Track Roller STO6DZ
  • Crowned Track Roller STO6
  • As A Bearing Dynamic C (kn) 5.4
  • Static Co (kn) 6.43
  • As A Track Roller Dynamic Cw (kn) 4.15
  • As A Track Roller Dynamic Fr Perm (kn) 4.04
  • As A Track Roller Static For Perm (kn) 5.63
  • Type Roller Follower Yoke Type
SKU: A0157754

Koyo/JTEKT Roller Follower Sep. w/ Inner Ring Cylindrical Outer Ring 6 x 19 x 10mm

Roller Follower w/ Inner Ring Cylindrical Outer Ring
