Description

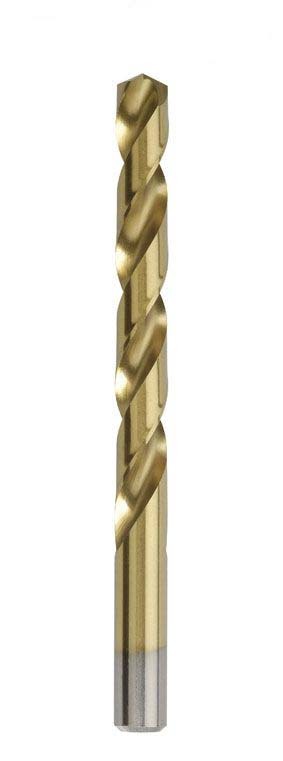

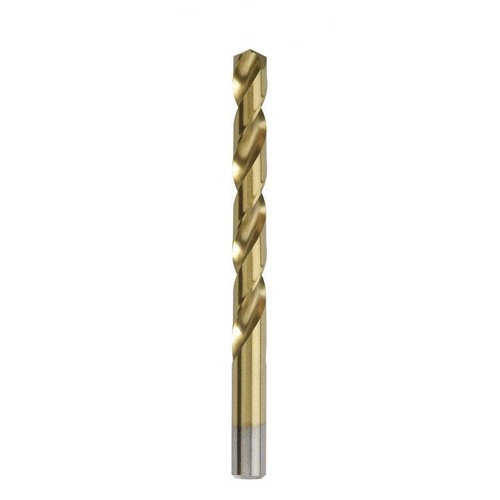

Saber TiN Coated M2-HSS Jobber Drill Bit

  • ANSI B94-11
  • 135° Split Point (crankshaft point).
  • Split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing end thrust.
  • The 135° point should be used to cut harder steel materials especially in deep hole applications.
  • In these situations it will produce thicker chips minimising work hardening of the cavity.
  • Faster penetration reduces abrasion and friction along the cutting edges.
  • Gold Finish TiN Coating (Titanium Nitride) helps to dissipate heat and reduces friction and cold welding.
  • The coating higher speed and feed rates can be achieved and tool life is greatly increased.
  • The TiN coating is achieved by Physical Vapour Deposition (PVD).
  • As with all surface coated tools, performance will deteriorate after resharpening.

Specifications

  • AIMS SKU A0205533
  • Brand Saber
  • Model Number 8011-3/32
  • Barcode Number 9326518111887
  • Point Type 135° Split Point
  • Diameter (inch) 3/32
  • Flute Length (mm) 32
  • Overall Length (OAL) mm 57
  • Diameter in (mm) 2.38
  • Spindle Speed Stainless Steel RPM 1606
  • Spindle Speed Tool Steel RPM 2409
  • Spindle Speed Cast Iron RPM 3212
  • Spindle Speed Malleable Iron RPM 3613
  • Spindle Speed Med. Carbon Steel RPM 4015
  • Spindle Speed Aluminium/Brass RPM 8163
  • Spindle Speed Wood/Plastic RPM 12178
  • Flute Type 30° Helix
  • Feed per Revolution (mm) 0.06
  • Spindle Speed Free Cutting Stl RPM 5754
  • Type Jobber Drill Bit
  • System of Measurement Imperial
  • Material M2-HSS TiN Coated
  • Surface Finish Gold Coloured
SKU: A0205533

Saber 3/32" TiN Coated M2-HSS Jobber Drill Bit (8011) - Pack of 10

Saber TiN Coated M2-HSS Jobber Drill Bit

$17.66
RRP $32.89
SAVE $15.23 (46%)
