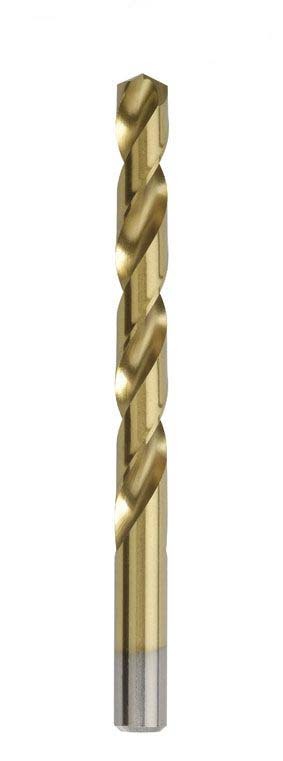

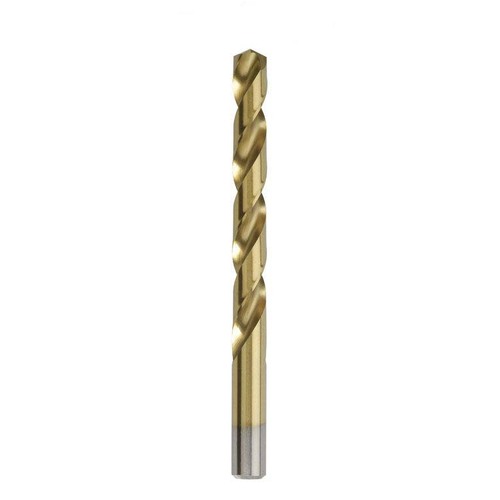

Saber TiN Coated M2-HSS Jobber Drill Bit

  • ANSI B94-11
  • 135° Split Point (crankshaft point).
  • Split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing end thrust.
  • The 135° point should be used to cut harder steel materials especially in deep hole applications.
  • In these situations it will produce thicker chips minimising work hardening of the cavity.
  • Faster penetration reduces abrasion and friction along the cutting edges.
  • Gold Finish TiN Coating (Titanium Nitride) helps to dissipate heat and reduces friction and cold welding.
  • The coating higher speed and feed rates can be achieved and tool life is greatly increased.
  • The TiN coating is achieved by Physical Vapour Deposition (PVD).
  • As with all surface coated tools, performance will deteriorate after resharpening.

Specifications

  • AIMS SKU A0205537
  • Brand Saber
  • Model Number 8011-5/32
  • Barcode Number 9326518111924
  • Point Type 135° Split Point
  • Diameter (inch) 5/32
  • Flute Length (mm) 51
  • Overall Length (OAL) mm 79
  • Diameter in (mm) 3.97
  • Spindle Speed Stainless Steel RPM 963
  • Spindle Speed Tool Steel RPM 1444
  • Spindle Speed Cast Iron RPM 1925
  • Spindle Speed Malleable Iron RPM 2166
  • Spindle Speed Med. Carbon Steel RPM 2407
  • Spindle Speed Aluminium/Brass RPM 4894
  • Spindle Speed Wood/Plastic RPM 7301
  • Flute Type 30° Helix
  • Feed per Revolution (mm) 0.09
  • Spindle Speed Free Cutting Stl RPM 3450
  • Type Jobber Drill Bit
  • System of Measurement Imperial
  • Material M2-HSS TiN Coated
  • Surface Finish Gold Coloured
SKU: A0205537

Saber 5/32" TiN Coated M2-HSS Jobber Drill Bit (8011) - Pack of 10

Saber TiN Coated M2-HSS Jobber Drill Bit

$26.17
RRP $48.73
SAVE $22.56 (46%)
