Description

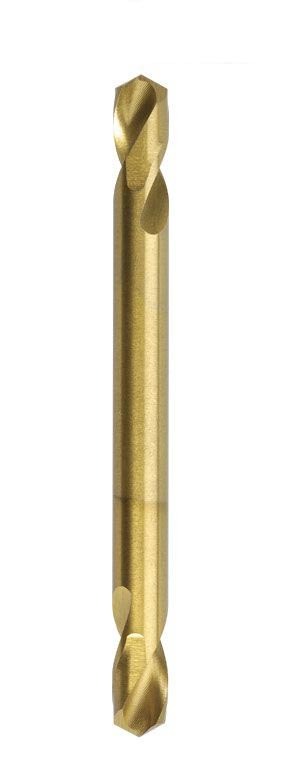

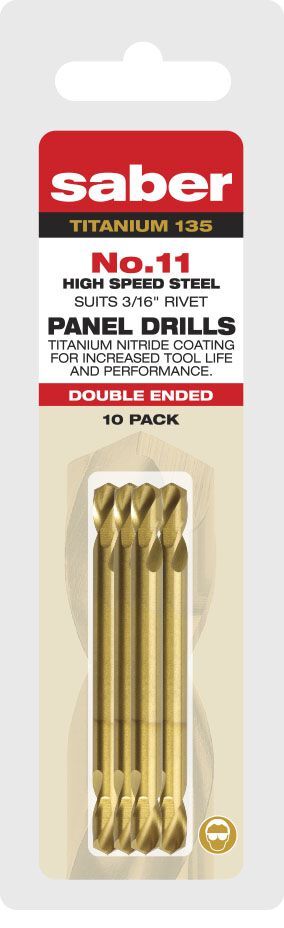

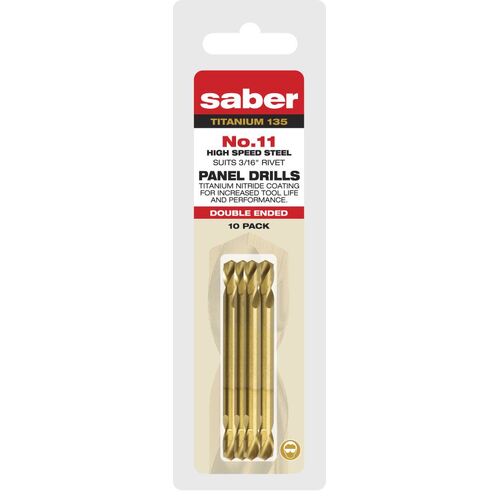

Saber Double Ended Panel Drill Bit - Clam Shell

135° Split Point (crankshaft point)
Split point is self centering reducing the need for end thrust.
The 135° point provides superior performance when drilling harder steel materials.
In most situations it will produce thicker chips minimising work hardening of the cavity.
Faster penetration reduces abrasion and friction along the cutting edges.
Gold Finish TiN Coating (Titanium Nitride) helps to dissipate heat and reduces friction and cold welding.
The coating higher speed and feed rates can be achieved and tool life is greatly increased.
The TiN coating is achieved by Physical Vapour Deposition (PVD).

Specifications

AIMS SKU A0207410

Brand Saber

Model Number 8040-11T

Barcode Number 9326518178521

Point Type 135° Split Point

Flute Length (mm) 17

Overall Length (OAL) mm 62

Surface Finish Gold Coloured

Diameter in (mm) 4.85

Rivet Diameter (in) 3/16

Diameter (Gauge) 11

End Type Double Ended

Maximum RPM :
