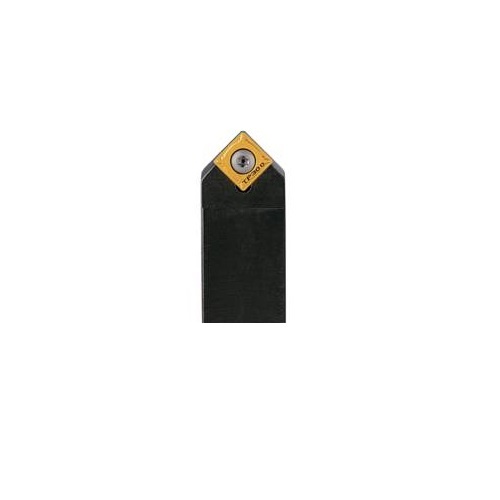

Seco Turning External Toolholder Screw Lock Neutral 45° S Insert Shape SSDCN-10-3

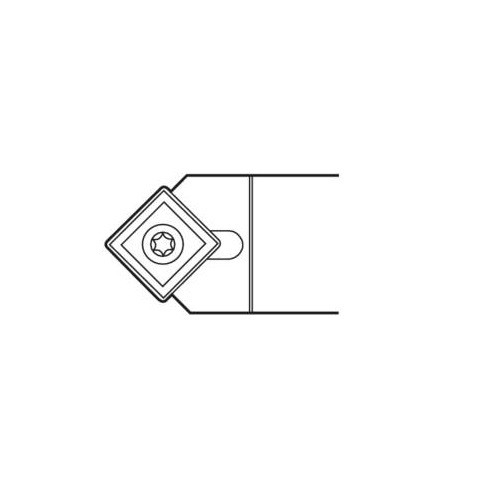

Turning External Toolholder (Screw Lock - D Type - S Insert Shape)

  • Screw lock.
  • S insert shape.
  • D tool type, straight shank with 45° side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115495
  • Brand Seco
  • Model Number 00043259
  • Barcode Number 43259000000106
  • Net Weight (kg) 0.016
  • Designation SSDCN-10-3

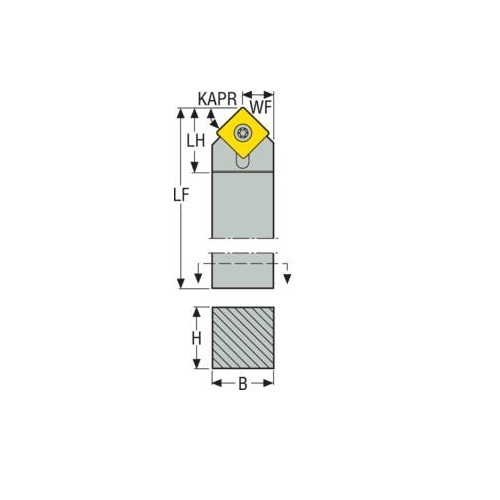

  • Functional Length (LF) 101.6mm
  • Insert Shape Code (SC) S
  • Head Length (LH) 16mm
  • Insert Size Inscribed Circle Diameter (mm) 3
  • Functional Width (WF) mm 7.9
  • Cutting Edge Length (mm) 3
  • Inclination Angle (LAMS) 0.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) D
  • Tool Type D Type
  • Height Of Tool Holder Shank (H) mm 15.9
  • Tool Cutting Edge Angle (KAPR) 45.0 deg
  • Connection Text Workpiece Side (ctws) SC09T3
  • Shank Width (b) mm 15.9
  • Direction Of Cutting (hand) Neutral
  • Connection Text Machine Side (CTMS) 15.88
  • Rake Angle Axial (gamp) 0.0 deg
  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Screw Lock
SKU: A0115495

Seco Turning External Toolholder Screw Lock 101.6 x 7.9 x 3mm Neutral 45° S Insert Shape SSDCN-10-3

Screw Lock - D Type - S Insert Shape

$146.96
RRP $183.70
SAVE $36.74 (20%)
