Description

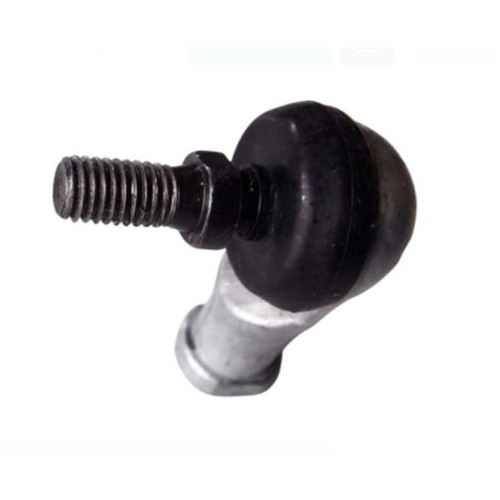

SDTZ Bearing Studded Rod End Female Metric RH Thread

  • A ball joint is a coupling that links two bits of suspension but allows movement between those two in a variety of directions.

About SDTZ Ball Stud

  • SDTZ Ball Studs is an "L" shaped shank with a male left hand thread made up of zinc base alloy and steel.
  • All Ball Studs are available in either left or right-hand thread (Add the suffix "L" for left-hand thread).

Specifications

  • AIMS SKU A0170947
  • Brand SDTZ
  • Model Number BL10BD/SDTZ
  • L2 (mm) 17
  • D3 (mm) 14.5
  • L4 (mm) 23
  • Weight (kg) 0.11
  • D (mm) 25
  • H (mm) 7
  • w (mm) 17
  • Thread Size (mm) M10 x 1 .5
  • J (mm) 14
  • d1 (6h) M10 x 1 .5
  • d2 (6g) M10 x 1 .5
  • L1 (min) 21
  • Basic Load Rating (kN) 18.3
  • L3 (min) - mm 23
  • SΦd 15.88
  • Type Studded Rod End
SKU: A0170947

SDTZ Bearing Studded Rod End Female Metric RH Thread M10 x 1.5mm

SDTZ Bearing Studded Rod End Female Metric RH Thread

$14.77
