Specifications
- AIMS SKU A0150651
- Brand Seagull
- Model Number VA-003V

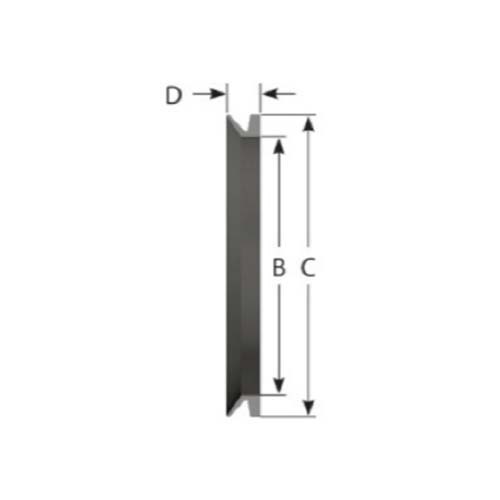

- Inside Diameter 2.5
- Outside Diameter 5.5
- Height 3
- Durometer 60
- Shaft Diameter 2.7-3.5

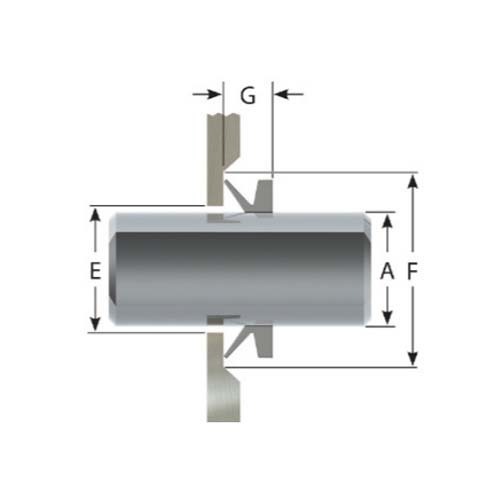

- Inside Diameter Housing Dimension E A + 1.00
- Outside Diamter Housing Dimension F A + 4.00
- Width Housing Dimension G 2.50 ± 0.30
- Type V-Ring Seal
- System of Measurement Metric
- Material Viton
SKU: A0150651

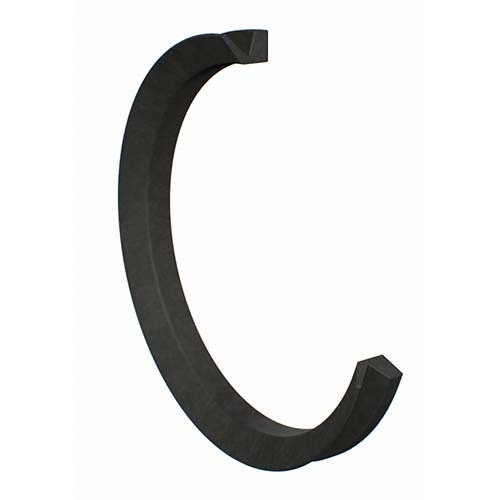

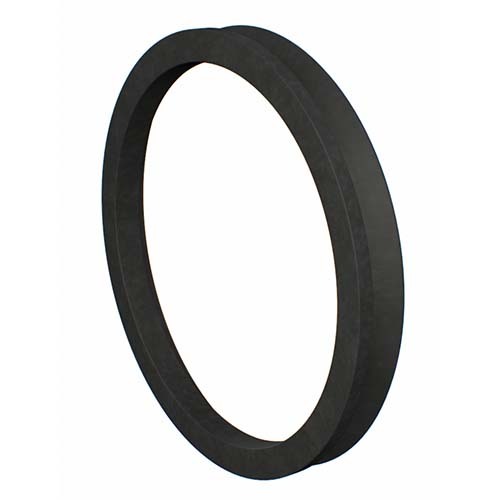

Seagull V-Ring Seal Viton 60 VA-003V Viton 60 Square Back 2.5 x 5.5 x 3mm
Seagull V-Ring Seal VA Series Straight Back Viton 60
$5.21
