MK2050 Square Shoulder Milling Cutter Carbide Insert

  • Milling cutter insert for square 6 shoulder mill insert size 08.
  • MK2050 Carbide PVD grade type.
  • 88.3 degrees insert included angle.
  • 12.48mm inscribed circle diameter.
  • 7.5mm theoretical cutting edge length and cutting edge effective length.
  • 6.45mm insert thickness.

All About MK2050 PVD Coated Grade:

  • PVD-coated grade for cast iron, Improved edge integrity.
  • First choice in all cast iron materials. Excellent for milling with and without coolant.
  • (Ti,Si)N/(Ti,Al)N

Specifications

  • AIMS SKU A0112952
  • Brand Seco
  • Model Number 02827877
  • Barcode Number 27877028001008
  • Designation XNEX080612TR-M13 MK2050

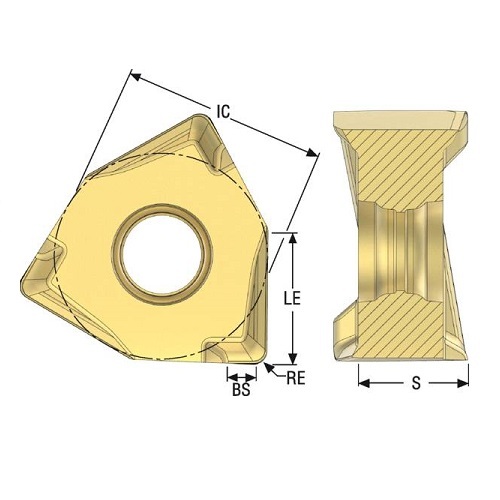

  • Wiper Edge Length (BS) X Corner Radius (RE) mm 0.9 x 1.2
  • Cutting Edge Count (CEDC) 6
  • Insert Included Angle (EPSR) 88.3 deg
  • Inscribed Circle Diameter (IC) 12.48
  • Insert Hand (IH) Right
  • Theoretical Cutting Edge Length (L) 7.5
  • Cutting Edge Effective Length (LE) mm 7.5
  • Insert Thickness (S) mm 6.45
  • Cutting Rake Deg 22°
  • Type Milling Cutter Insert
  • Grade Type Carbide PVD

Video

SKU: A0112952

Seco 0.9 x 1.2mm Square Shoulder Milling Cutter Insert XNEX080612TR-M13,MK2050 10 Pcs

MK2050 Square 6 Shoulder Milling Cutter Carbide Insert

$433.76
RRP $500.50
SAVE $66.74 (13%)
