Specifications

AIMS SKU A0112958
Brand Seco
Model Number 02743973
Barcode Number 43973027001006
Designation XNEX080612TR-ME09 MM4500

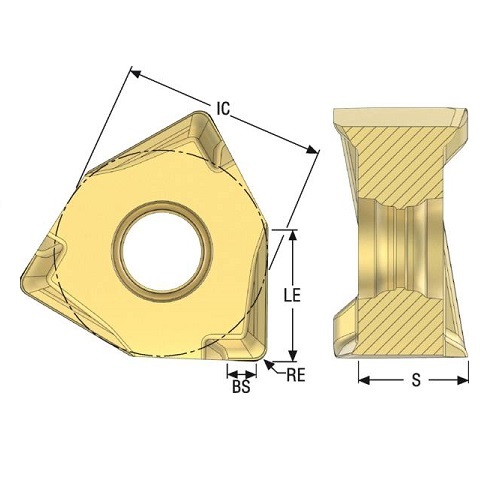

Wiper Edge Length (BS) X Corner Radius (RE) mm 1 x 1.2
Cutting Edge Count (CEDC) 6
Insert Included Angle (EPSR) 88.3 deg
Inscribed Circle Diameter (IC) 12.48
Insert Hand (IH) Right
Theoretical Cutting Edge Length (L) 7.5
Cutting Edge Effective Length (LE) mm 7.5
Insert Thickness (S) mm 6.45
Cutting Rake Deg 27°

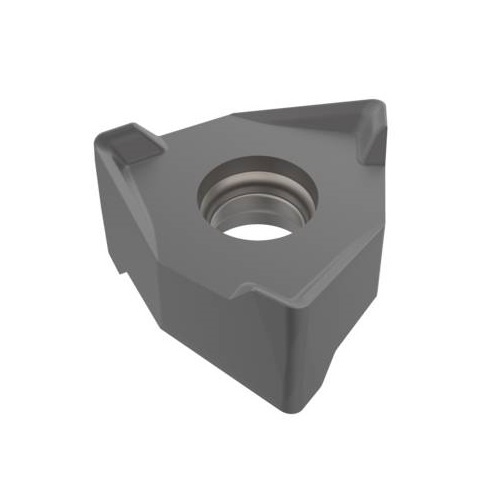

• Type Milling Cutter Insert
• Grade Type Carbide PVD
