Description

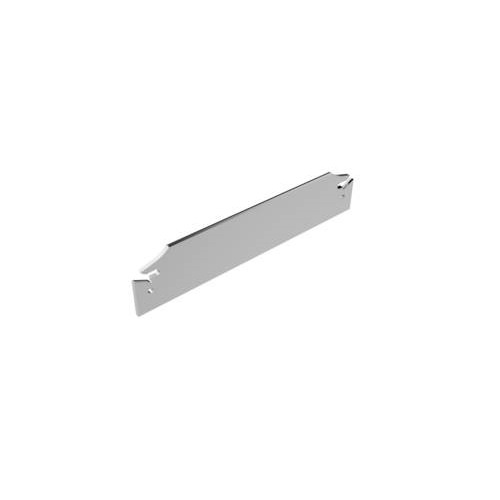

Parting Off 150.10A-20/25 HSS Blade /strong>

  • Optimized for parting-off applications, the Seco 150.10 consists of a high-speed steel blade that holds the insert and a holder that retains the blade.
  • This setup provides maximum stability, while the hot strength of the high-speed steel ensures the insert will be securely retained especially when the blade is hot.
  • 150.10 is also available in combination with Jetstream Tooling® Duo, a high-pressure cooling system that provides directed coolant to the cutting edge by two streams to rake and clearance surfaces.

Specifications

  • AIMS SKU A0113017
  • Brand Seco
  • Model Number 02578595
  • Barcode Number 78595025000100
  • Net Weight (kg) 0.079
  • Type Parting Off Blade

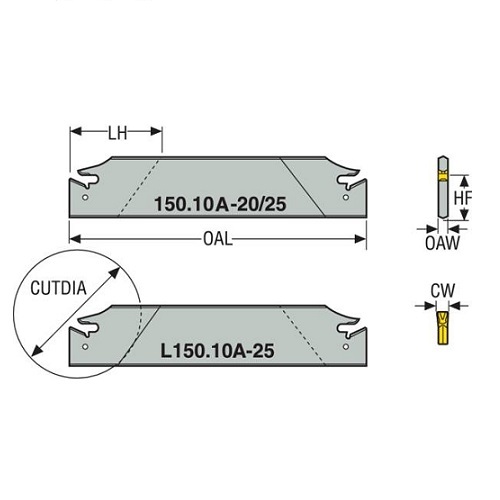

  • Designation L150.10A-25-1.4
  • Shank Type Blade
  • Direction Of Cutting (hand) Left
  • Version (internal/external/both) External
  • Connection Text Workpiece Side (ctws) 150.10-1.4
  • Overall Width X Length (mm) 1.2 x 150
  • Cutting Depth Maximum (cdx) mm 17.5
  • Connection Text Machine Side (ctms) mm Blade-25
  • Work Piece Parting Diameter Maximum (CUTDIA) mm 35
  • Cutting Width (mm) 1.4
  • Functional Height (HF) mm 24.9
  • Tool Cutting Edge Angle (KAPR) 90.0 deg
  • Head Length (LH) mm 24

Video

SKU: A0113017

Seco 1.2 x 150mm Parting Off 150.10A-20/25 HSS Blade L150.10A-25-1.4

Parting Off 150.10A-20/25 HSS Blade

$187.44
RRP $234.30
SAVE $46.86 (20%)
