Specifications

AIMS SKU A0112980
Brand Seco
Model Number 02640640
Barcode Number 40640026001001
Designation XNEX080608TR-M13 MP3000

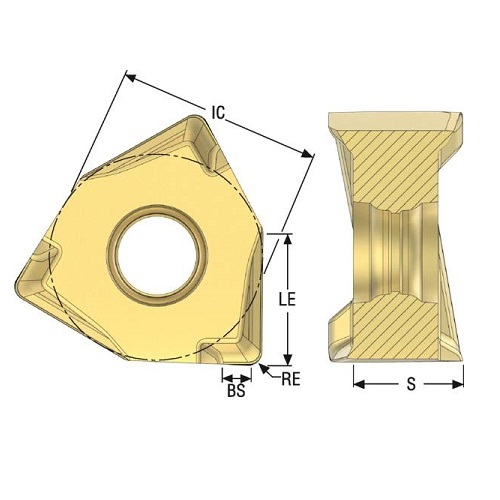

Wiper Edge Length (BS) X Corner Radius (RE) mm 1.3 x 0.8

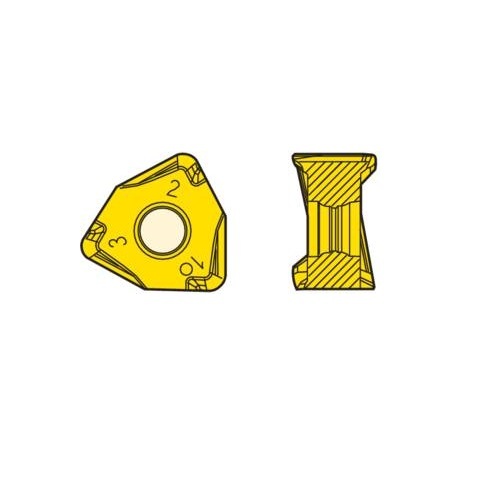

Cutting Edge Count (CEDC) 6
Insert Included Angle (EPSR) 88.3 deg
Inscribed Circle Diameter (IC) 12.48
Insert Hand (IH) Right
Theoretical Cutting Edge Length (L) 7.5
Cutting Edge Effective Length (LE) mm 7.5
Insert Thickness (S) mm 6.45
Cutting Rake Deg 22°
• Type Milling Cutter Insert
• Grade Type Carbide PVD
