Specifications

AIMS SKU A0112956
Brand Seco
Model Number 02779758
Barcode Number 79758027001004
Designation XNEX080608R-M08 MM4500

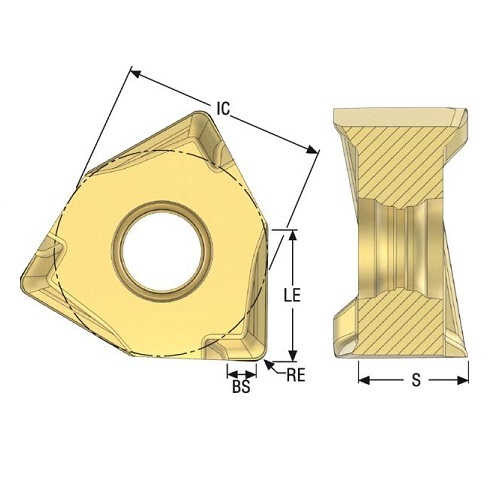

Wiper Edge Length (BS) X Corner Radius (RE) mm 1.4 x 0.8
Cutting Edge Count (CEDC) 6
Insert Included Angle (EPSR) 88.3 deg
Inscribed Circle Diameter (IC) 12.48
Insert Hand (IH) Right
Theoretical Cutting Edge Length (L) 7.5
Cutting Edge Effective Length (LE) mm 7.5
Insert Thickness (S) mm 6.45
Cutting Rake Deg 24°

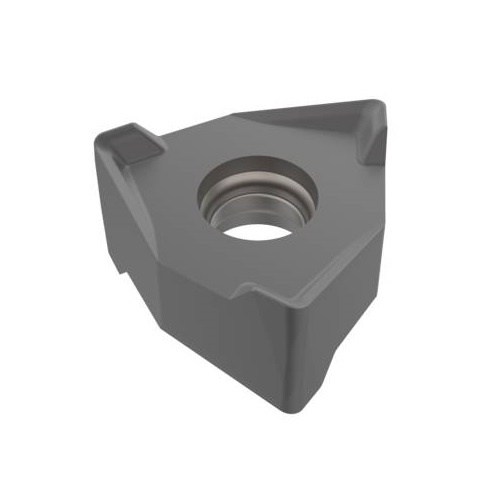

• Type Milling Cutter Insert
• Grade Type Carbide PVD
