Specifications

AIMS SKU A0112976
Brand Seco
Model Number 02779771
Barcode Number 79771027001003

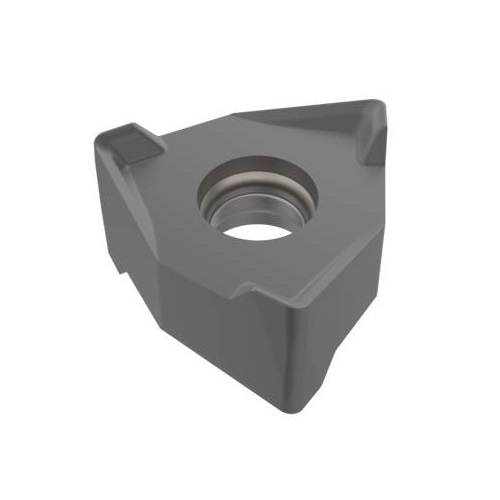

Type Milling Cutter Insert
Designation XNEX080608R-M08 MS2500
Grade Type Carbide CVD

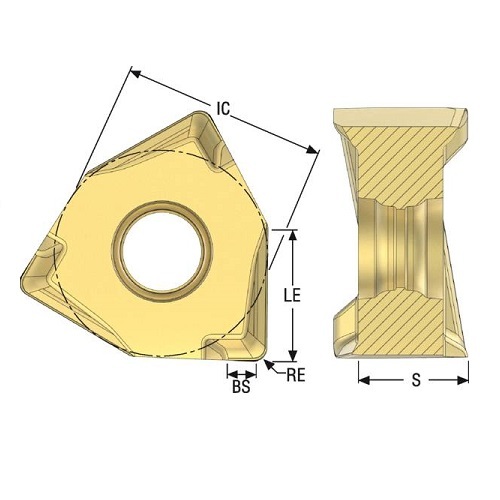

Wiper Edge Length (BS) X Corner Radius (RE) mm 1.4 x 0.8
Cutting Edge Count (CEDC) 6
Insert Included Angle (EPSR) 88.3 deg
Inscribed Circle Diameter (IC) 12.48
Insert Hand (IH) Right
Theoretical Cutting Edge Length (L) 7.5
Cutting Edge Effective Length (LE) mm 7.5
Insert Thickness (S) mm 6.45
Cutting Rake Deg 24°
