Specifications

AIMS SKU A0112979
Brand Seco
Model Number 02779767
Barcode Number 79767027001006

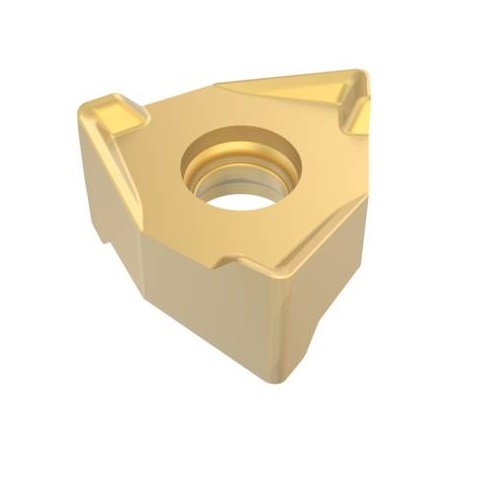

Designation XNEX080608R-M08 MP3000

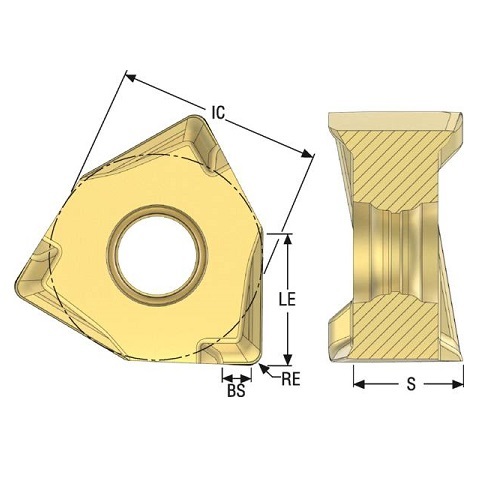

Wiper Edge Length (BS) X Corner Radius (RE) mm 1.4 x 0.8

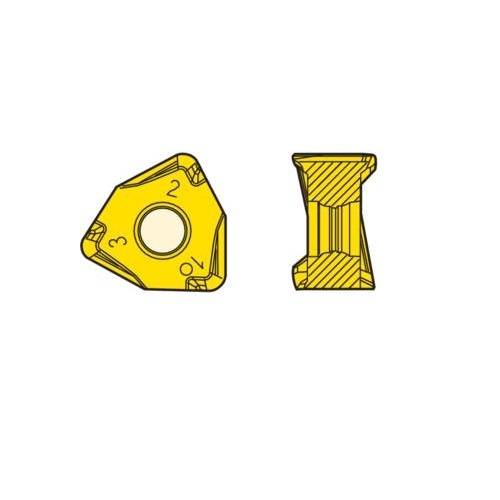

Cutting Edge Count (CEDC) 6
Insert Included Angle (EPSR) 88.3 deg
Inscribed Circle Diameter (IC) 12.48
Insert Hand (IH) Right
Theoretical Cutting Edge Length (L) 7.5
Cutting Edge Effective Length (LE) mm 7.5
Insert Thickness (S) mm 6.45
Cutting Rake Deg 24°
• Type Milling Cutter Insert
• Grade Type Carbide PVD
