Specifications

AIMS SKU A0112981
Brand Seco
Model Number 02640641
Barcode Number 40641026001008

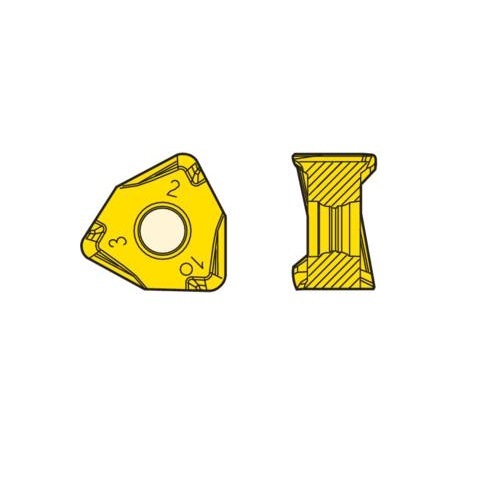

Designation XNEX080608TR-MD15 MP3000

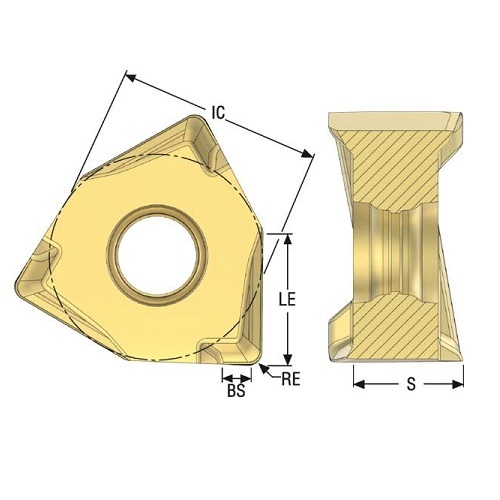

Wiper Edge Length (BS) X Corner Radius (RE) mm 1.4 x 0.8
Cutting Edge Count (CEDC) 6
Insert Included Angle (EPSR) 88.3 deg
Inscribed Circle Diameter (IC) 12.48
Insert Hand (IH) Right
Theoretical Cutting Edge Length (L) 7.5
Cutting Edge Effective Length (LE) mm 7.5
Insert Thickness (S) mm 6.45
Cutting Rake Deg 17°

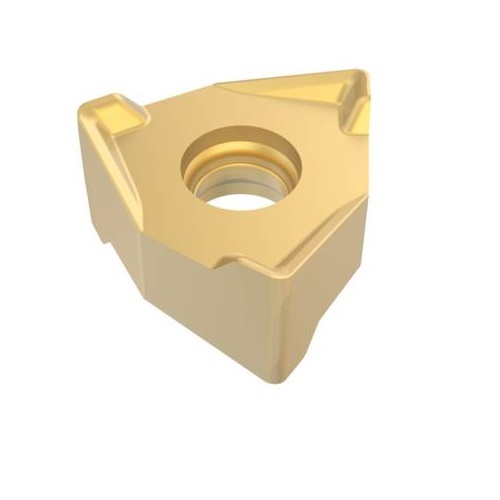

• Type Milling Cutter Insert
• Grade Type Carbide PVD
