Specifications

AIMS SKU A0112995
Brand Seco
Model Number 03113833
Barcode Number 13833031001005

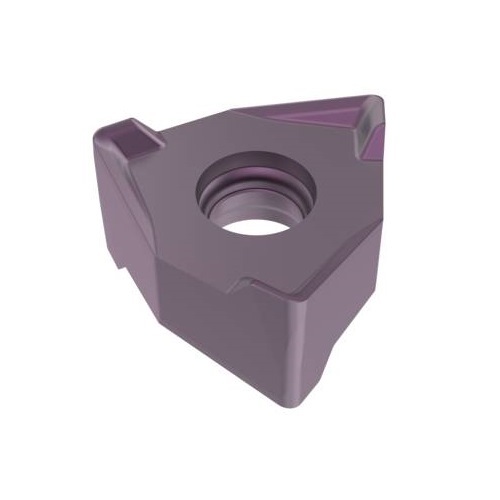

Type Milling Cutter Insert
Designation XNEX080608R-M08 MP2050
Grade Type Carbide PVD

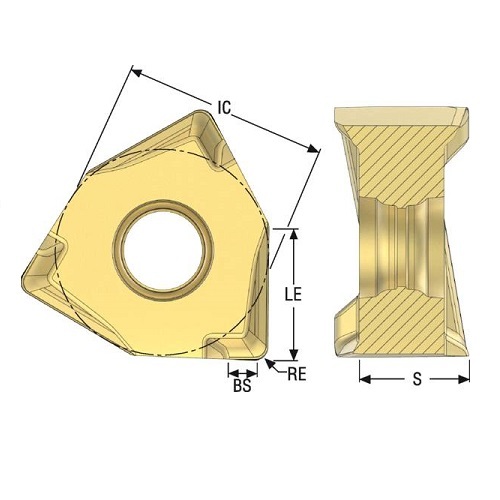

Wiper Edge Length (BS) X Corner Radius (RE) mm 1.4 x 0.8

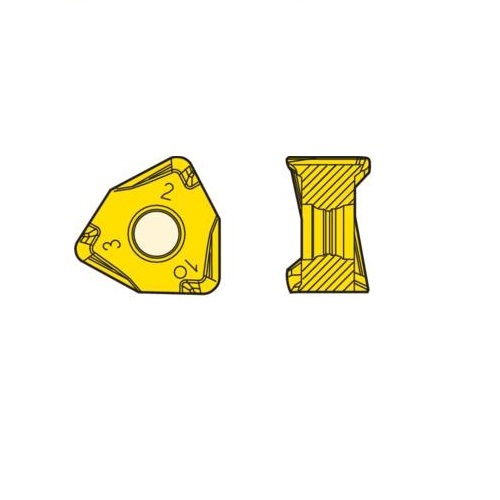

Cutting Edge Count (CEDC) 6
Insert Included Angle (EPSR) 88.3 deg
Inscribed Circle Diameter (IC) 12.48
Insert Hand (IH) Right
Theoretical Cutting Edge Length (L) 7.5
Cutting Edge Effective Length (LE) mm 7.5
Insert Thickness (S) mm 6.45
Cutting Rake Deg 24°
