Specifications

AIMS SKU A0112996
Brand Seco
Model Number 02899465
Barcode Number 99465028001004

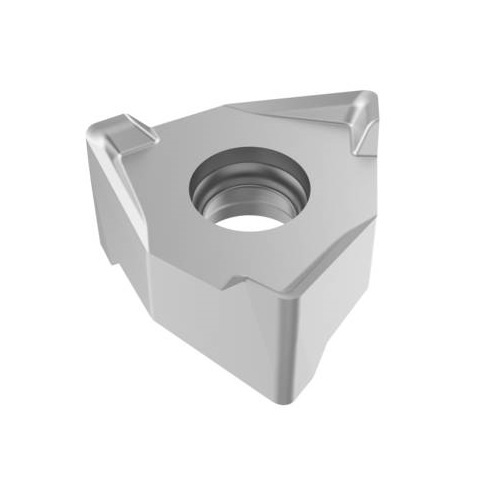

Type Milling Cutter Insert
Designation XNEX080608R-M08 MS2050
Grade Type Carbide PVD

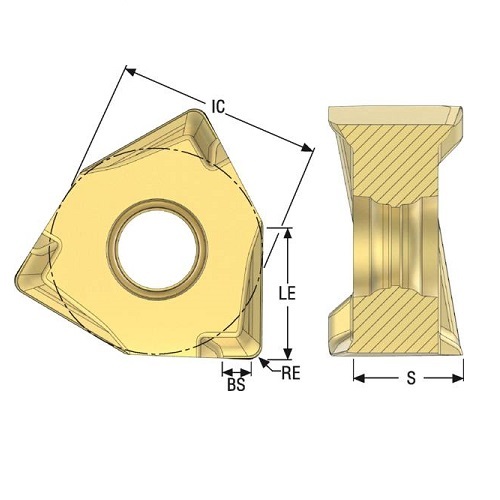

Wiper Edge Length (BS) X Corner Radius (RE) mm 1.4 x 0.8
Cutting Edge Count (CEDC) 6
Insert Included Angle (EPSR) 88.3 deg
Inscribed Circle Diameter (IC) 12.48
Insert Hand (IH) Right
Theoretical Cutting Edge Length (L) 7.5
Cutting Edge Effective Length (LE) mm 7.5
Insert Thickness (S) mm 6.45
Cutting Rake Deg 24°
