Specifications

AIMS SKU A0112997
Brand Seco
Model Number 02779770
Barcode Number 79770027001006

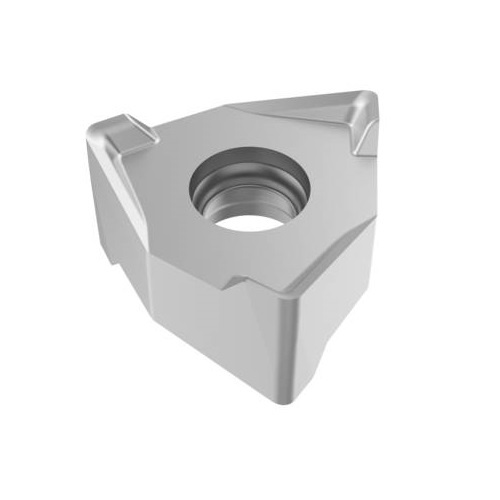

Type Milling Cutter Insert
Designation XNEX080608R-M08 H25
Grade Type Carbide Uncoated

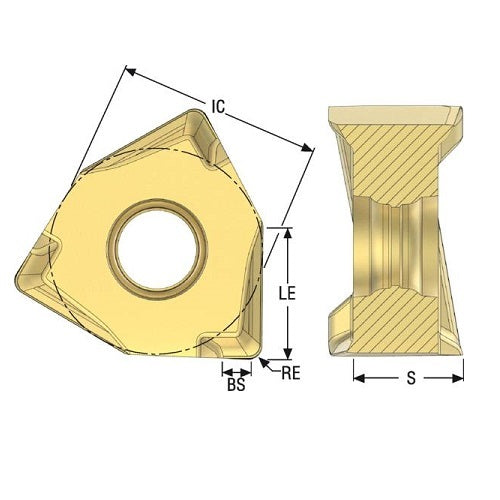

Wiper Edge Length (BS) X Corner Radius (RE) mm 1.4 x 0.8

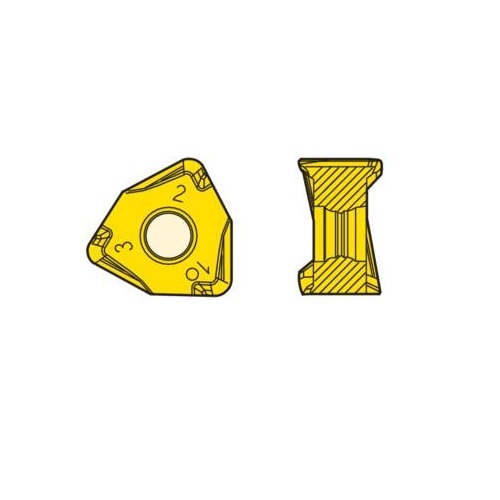

Cutting Edge Count (CEDC) 6
Insert Included Angle (EPSR) 88.3 deg
Inscribed Circle Diameter (IC) 12.48
Insert Hand (IH) Right
Theoretical Cutting Edge Length (L) 7.5
Cutting Edge Effective Length (LE) mm 7.5
Insert Thickness (S) mm 6.45
Cutting Rake Deg 24°
