Specifications
- AIMS SKU A0118907
- Brand Seco
- Model Number 02827868
- Barcode Number 27868028001006
- Type Chamfer Turbo 12 Milling Insert
- Designation XOMX120408TR-ME08 MK2050
- Grade MK2050
- Grade Type Carbide PVD
- Cutting Edge Count (CEDC) 2
- Insert Hand (IH) Right
- Cutting Edge Effective Length (LE) mm 11.6
- Insert Thickness (S) mm 5.07
- Cutting Rake Deg 20.1 deg
- Corner Radius (RE) mm 0.8
- Insert Seat Size Code (SSC) XOMX12..
- Wiper Edge Length (bs) Mm 1.6
- Clearance Angle Major) Deg 15.0 deg
- Insert Width (w1) Mm 8.2
SKU: A0118907

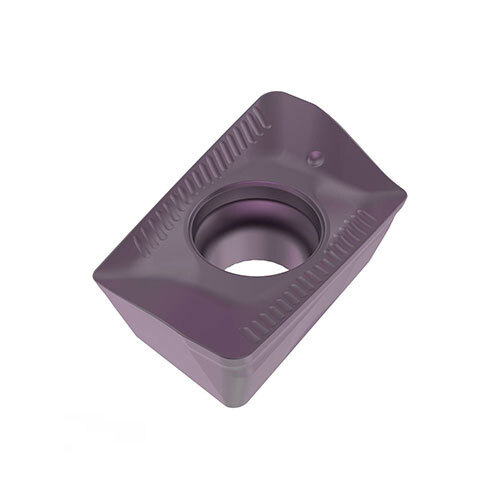

Seco 11.6 x 5.07mm MK2050 20.1° Chamfer Mill Turbo 12 Milling Insert XOMX120408TR-ME08,MK2050 Pack of 10
MK2050 (ME08) Chamfer Mill Turbo 12 Milling Insert
$287.90
