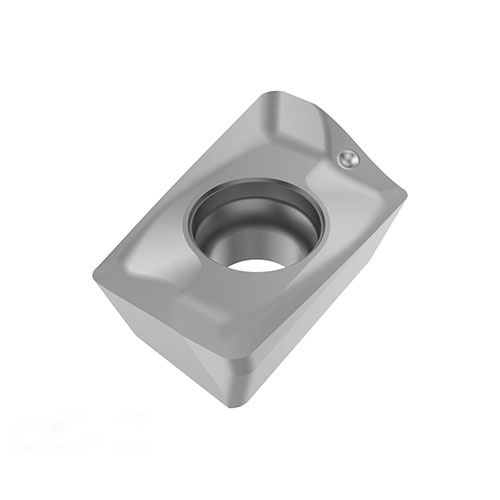

Seco 12 x 5.03mm H15 27.2° Chamfer Mill Turbo 12 Milling Insert XOEX120408FR-E06,H15 Pack of 10

Description

Seco 12 x 5.03mm H15 27.2° Chamfer Mill Turbo 12 Milling Insert XOEX120408FR-E06,H15 Pack of 10

H15 (E06) Chamfer Mill Turbo 12 Milling Insert

H15 grade, carbide uncoated.

H15 Grade

Hard, wear-resistant grade for milling in aluminium.

About Chamfer Turbo 12 2-Cutting-Edge-Single-Sided Inserts

Available in Arbor, Combimaster^TMand Seco-Capto connections.
30°, 45°, 60°, and 75° setting angles.
Max. depth of cut 31 mm (1.22 inch) with the 75° milling cutter.
XO.X12 inserts with 2 cutting edges.
Front chamfering.

About Seco Chamfer Mills

Seco chamfer mills offer the same free cutting action as our standard milling cutters, providing strong and reliable performance.
With options for through-coolant and 30-degree, 45-degree, 60-degree and 75-degree setting angles.
Our family of chamfer mills is available with Combimaster™, Arbor and Seco-Capto connections.

Specifications

AIMS SKU A0118906

Brand Seco

Model Number 02205058

Barcode Number 5058022001005

Type Chamfer Turbo 12 Milling Insert

Designation XOEX120408FR-E06 H15

Grade H15

Grade Type Carbide Uncoated

Cutting Edge Count (CEDC) 2

Insert Hand (IH) Right

Cutting Edge Effective Length (LE) mm 12

Insert Thickness (S) mm 5.03

Cutting Rake Deg 27.2 deg

Corner Radius (RE) mm 0.8

Insert Seat Size Code (SSC) XOEX12..

Wiper Edge Length (bs) Mm 1.6

Clearance Angle Major) Deg 15.0 deg

Insert Width (w1) Mm 8.2
