Description

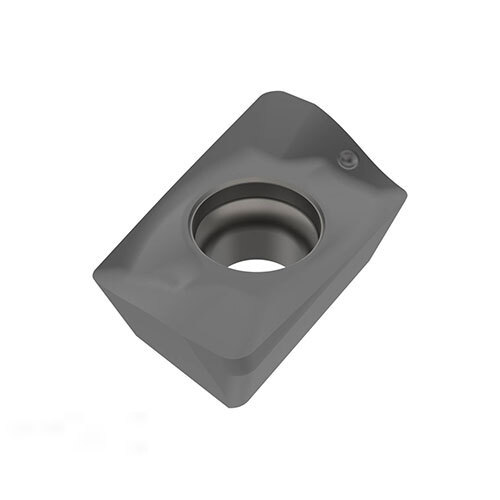

Seco 12 x 5.03mm MM4500 20.3° Chamfer Mill Turbo 12 Milling Insert XOEX120408R-M07,MM4500 Pack of 10

MM4500 (M07) Chamfer Mill Turbo 12 Milling Insert

  • MM4500 grade, carbide CVD.
  • CVD (Chemical Vapour Deposition).
  • CVD-coated grades are suitable for wear resistance in demanding applications with high feed rates and intermediate to high cutting speed.

MM4500 Grade

  • Extremely tough grade for duplex stainless steel.
  • It can also be used for a wide range of materials when cutting conditions are unstable.

About Chamfer Turbo 12 2-Cutting-Edge-Single-Sided Inserts

  • Available in Arbor, CombimasterTM and Seco-Capto connections.
  • 30°, 45°, 60°, and 75° setting angles.
  • Max. depth of cut 31 mm (1.22 inch) with the 75° milling cutter.
  • XO.X12 inserts with 2 cutting edges.
  • Front chamfering.

About Seco Chamfer Mills

  • Seco chamfer mills offer the same free cutting action as our standard milling cutters, providing strong and reliable performance.
  • With options for through-coolant and 30-degree, 45-degree, 60-degree and 75-degree setting angles.
  • Our family of chamfer mills is available with Combimaster™, Arbor and Seco-Capto connections.

Specifications

  • AIMS SKU A0118903
  • Brand Seco
  • Model Number 02743853
  • Barcode Number 43853027001001
  • Type Chamfer Turbo 12 Milling Insert
  • Designation XOEX120408R-M07 MM4500
  • Grade MM4500
  • Grade Type Carbide CVD
  • Cutting Edge Count (CEDC) 2
  • Insert Hand (IH) Right
  • Cutting Edge Effective Length (LE) mm 12
  • Insert Thickness (S) mm 5.03
  • Cutting Rake Deg 20.3 deg
  • Corner Radius (RE) mm 0.8
  • Insert Seat Size Code (SSC) XOEX12..
  • Wiper Edge Length (bs) Mm 1.6
  • Clearance Angle Major) Deg 15.0 deg
  • Insert Width (w1) Mm 8.2

Video

SKU: A0118903

Seco 12 x 5.03mm MM4500 20.3° Chamfer Mill Turbo 12 Milling Insert XOEX120408R-M07,MM4500 Pack of 10

MM4500 (M07) Chamfer Mill Turbo 12 Milling Insert

$352.74
