Description

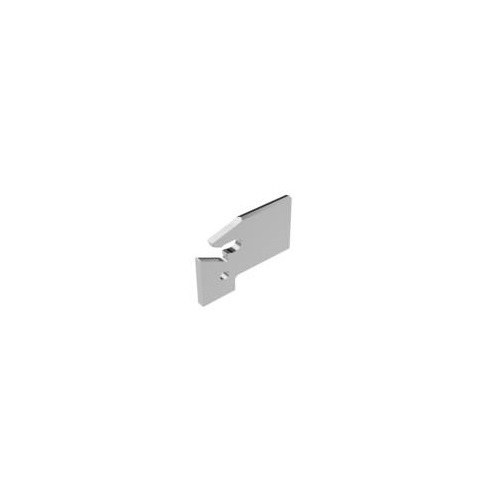

Parting Off 150.10A-15 HSS Blade

  • Optimized for parting-off applications, the Seco 150.10 consists of a high-speed steel blade that holds the insert and a holder that retains the blade.
  • This setup provides maximum stability, while the hot strength of the high-speed steel ensures the insert will be securely retained especially when the blade is hot.
  • 150.10 is also available in combination with Jetstream Tooling® Duo, a high-pressure cooling system that provides directed coolant to the cutting edge by two streams to rake and clearance surfaces.

Specifications

  • AIMS SKU A0113018
  • Brand Seco
  • Model Number 02578572
  • Barcode Number 78572025000101
  • Net Weight (kg) 0.01
  • Designation 150.10A-15-1.4
  • Connection Text Machine Side (CTMS) Blade-15
  • Connection Text Workpiece Side (ctws) 150.10-1.4

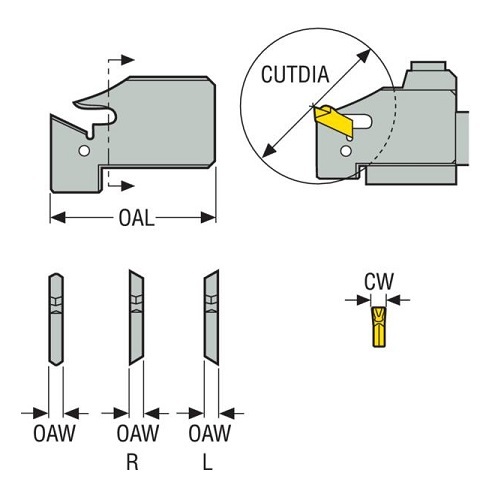

  • Overall Width X Length (mm) 1.2 x 33
  • Cutting Depth Maximum (cdx) mm 19
  • Work Piece Parting Diameter Maximum (CUTDIA) mm 38
  • Functional Height (HF) mm 15.5
  • Tool Cutting Edge Angle (KAPR) 90.0 deg
  • Cutting Width (CW) mm 1.4
  • Type Parting Off Blade
  • Shank Type Blade
  • Direction Of Cutting (hand) Neutral
  • Version (internal/external/both) External

Video

SKU: A0113018

Seco 1.2 x 33mm Parting Off 150.10A-15 HSS Blade 150.10A-15-1.4

Parting Off 150.10A-15 HSS Blade

$98.56
RRP $123.20
SAVE $24.64 (20%)
